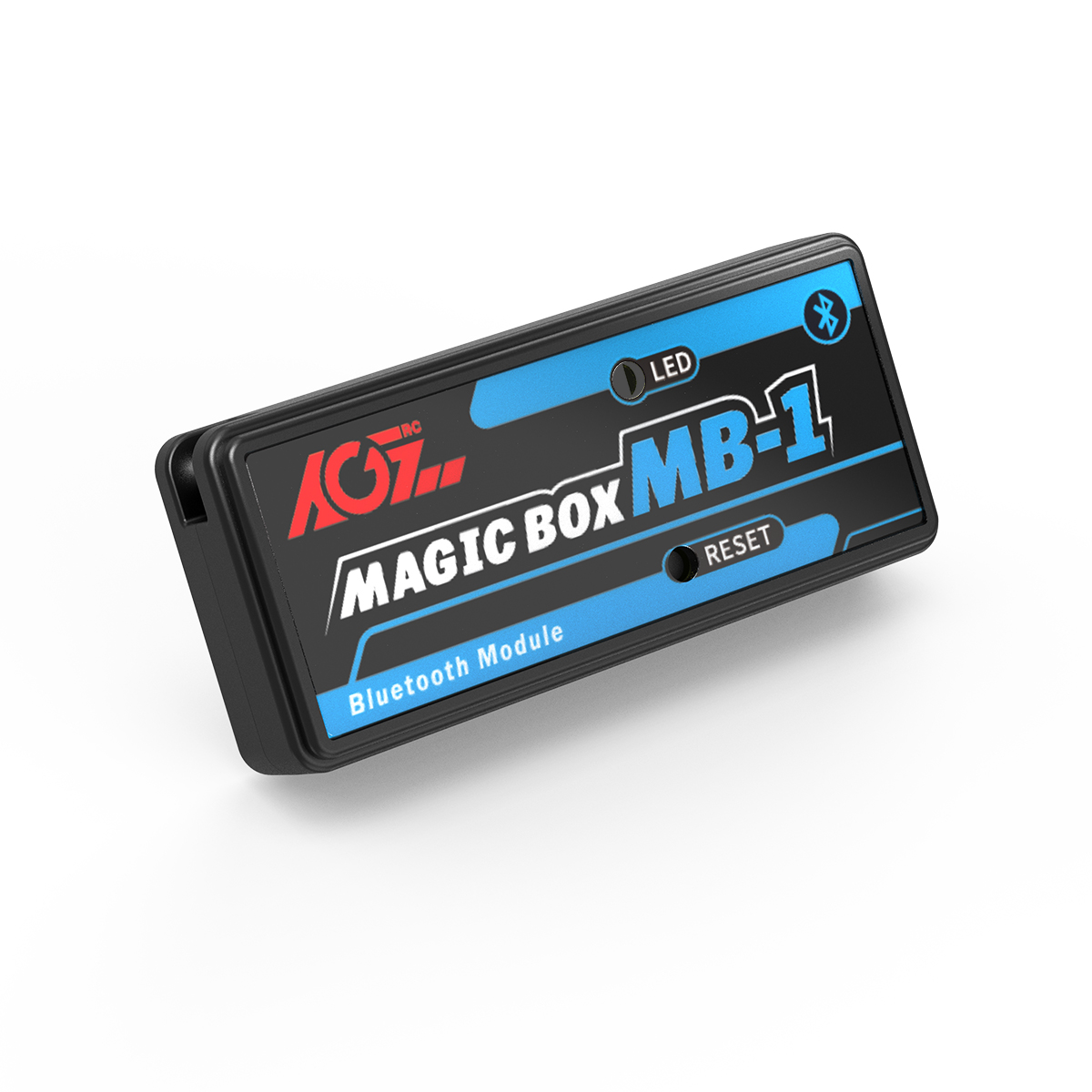

MB-1 is a Bluetooth module from AGFRC company, which needs to be used in conjunction with the APP "AGFRC LINK". Currently, it supports parameter tuning for the following products under AGF:
1. AGF Programmable Servo
2. AGF Programmable Winch Servo
3. AGF Programmable Gyro
4. AGF Programmable BEC
Specifications:
Size: 43.2 * 19.2 * 9 mm
Weight: 6.2g
Voltage supply: DC 5-8.4V
Output voltage and current: DC 5-8V / 0-3A
Static current consumption: Less than 50mA
⚠️Warning: MAGIC BOX MB-1 power supply cannot exceed the maximum power supply voltage, exceeding it will damage the connected products!
Remark: The gyroscope and electronic tuning module currently do not support adjustment, magic box MB-1 will continue to be updated in the fulture, please stay tuned…

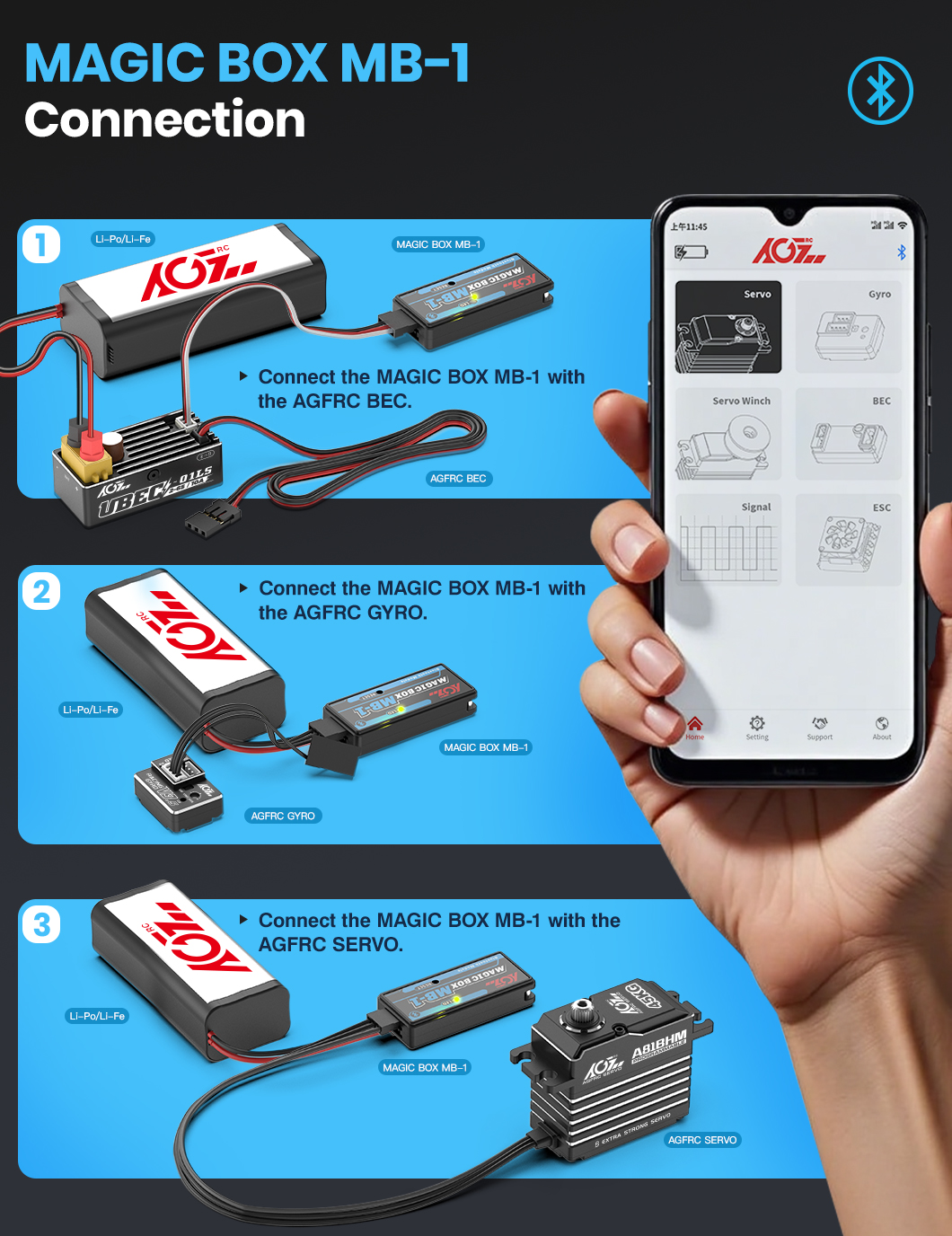

MB-1 And App(AGFRC LINK) Connection Process:
1. Install the app“AGFRC LINK”, Support Apple / Android platforms.
Attention: The first time running the APP “AGFRC LINK” requires access to the Bluetooth and loca permissions of the phone / tablet, Permission needs to be opened for normal use!
2. Connect the power supply to MAGIC BOX MB-1, Blue light flashes after successful power connection.
3. Open the app, Click on “Setting”, After entering, click on “Bluetooth Search” to enter the Bluetooth search page, “AGF_RC” is the default Bluetooth name for MAGIC BOX MB-1, Click on “AGF_RC” and enter the initial 4-digit password “0000” (The password can be changed, but it can only be 4 Arabic numerals) Finally click “OK”, A hook symbol appears on the right side of the Bluetooth name "AGF_RC" option, It indicates a successful connection, Return to the top right corner of the main interface, where the Bluetooth symbol is blue. (If there is no hook symbol on the right side of the Bluetooth name “AGF_RC”option, It is possible to select the wrong Bluetooth option or password, Please try reconnecting to Bluetooth.)
4. After successful Bluetooth connection, Long press the connected Bluetooth name (About 3 s), Pop up modification window, The function is to modify the name of the connected Bluetooth module (The name can be a pure number or a combination of numbers and letters) Enter the custom name in the modification window and click “OK”, After the modification is completed, the APP and Bluetooth module will automarically reconnect, Automatic reconnection completed after 10 seconds.
5. If you forget the connection password for MAGIC BOX MB-1, Press and hold the “RESET” button on MB-1 for approxi mately 10 seconds to reset, After 10 seconds, the red light flashes slowly twice, The password will be reset to the initial "0000".
