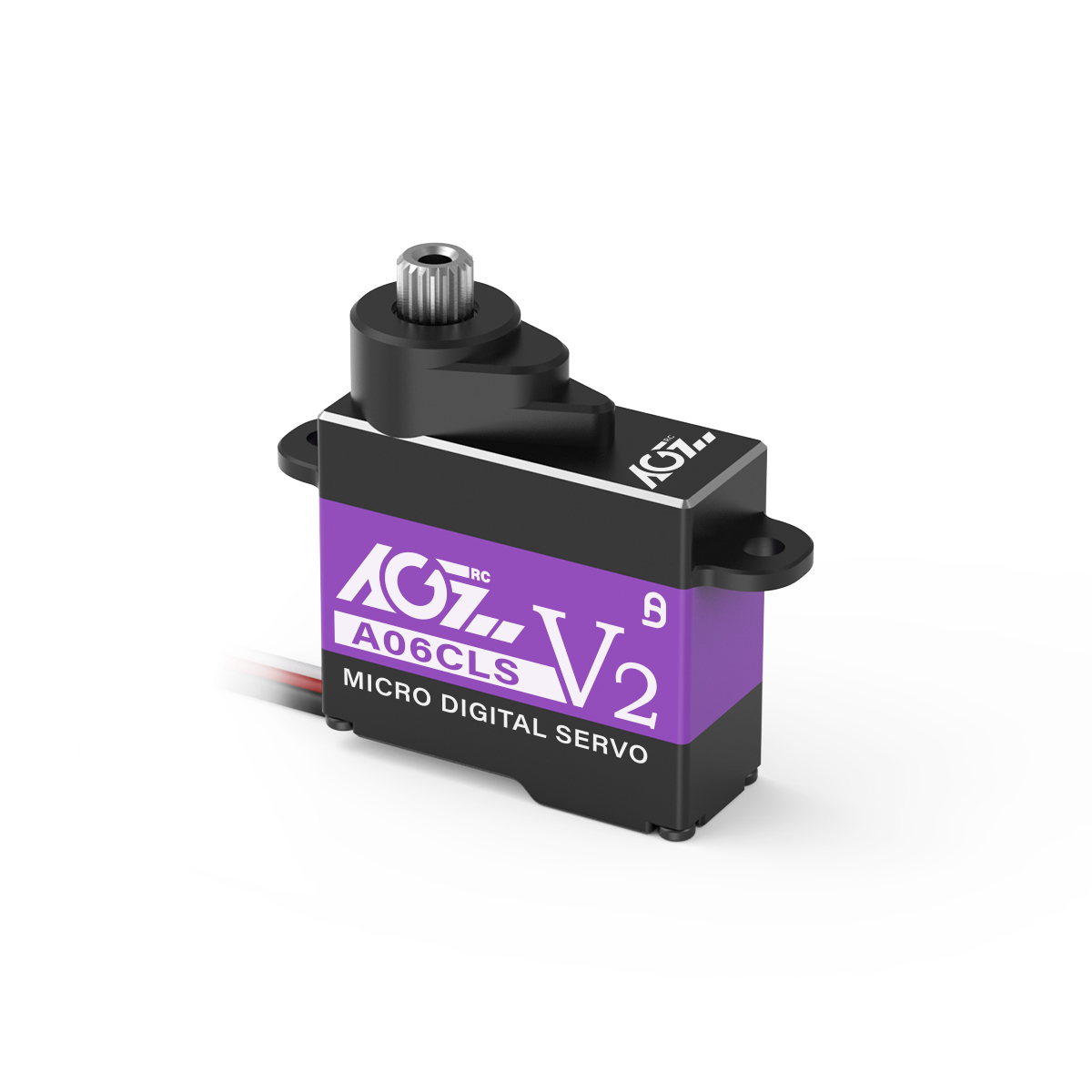

A06CLS V2 Aluminum Case 20T High Precision 3KG 0.052Sec MG 7g Micro Digital Servo for Mini Size Airplane Car
Item Name:
A06CLS V2 (20T)
Weight:
7g
Voltage:
4.8-8.4V
Retail Price:
US$54.99/PC
Application:
RC Car, Robot, Boat, Helicopter, Airplane

AGFRC A06CLS V2 is the upgrade version of A06CLS servo, with high voltage feature, this servo compatible to be used for small size airplanes and gliders. 7g super light weight with full CNC machining case, 8mm compact size allow to suit for more models with space and weight requirements. 2S wide voltage which produce 3KG high torque and 0.052Sec super spec at 8.4V. Bring different driving feel for the mini car with this tiny size servo. Durable titanium gear and 20T spline provide higher precision in operation. JST and JR plug option allow to be used for different models. Of course, the highlight "programmable" feature is still continuing for this lovely micro servo. Black edition and purple edition are available.


Feature

High Quality Coreless Motor

High Accuracy Titanium Gear

Ultra Light Weight Mini Z Servo

Fast Cooling Cnc Aluminum Case

2S 8.4V High Voltage Compatibility

Design for mini z cars MRZ, MRT, RX28, 1/18, 1/24, 1/27, 1/28 Scale Cars such as GL Racing GLD, GLA V2.1, GLR, GLF-1, GLR GT.


Note: There are 15T and 20T spline option, if you care about the output spline size, pls mark it while place the order.


Specification

A06CLS V2 (20T Version)

Operating Voltage: 4.8-8.4V

Operating speed: 0.075sec/60°@4.8V

Operating speed: 0.066sec/60°@6.0V

Operating speed: 0.058sec /60° @ 7.4V

Operating speed: 0.052sec /60° @ 8.4V

Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V

Stall Torque: 2.2 kg-cm (30 oz-in) @6.0V

Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium

Motor: Coreless

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

Weight: 7g

Connector Wire: JST1.5 60mm / 28AWG
