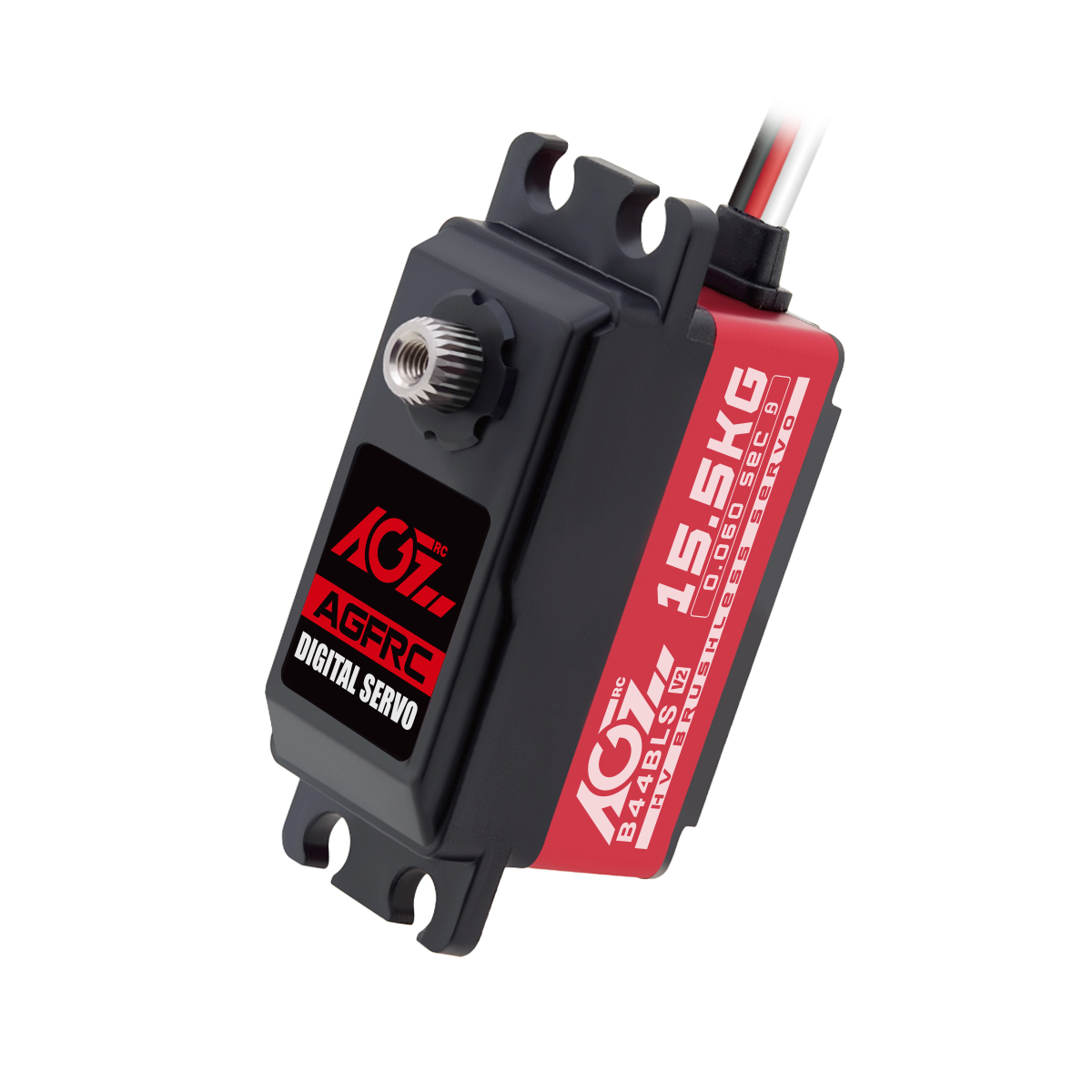

AGFRC B44BLS V2 SERVO            PURCHASE LINK

AGFRC B44BLS V2 is a high-performance small size and light weight low-profile servo with an affordable price and good quality. The speed can reach 0.060sec/60° and the torque can be 15.50kg-cm @8.4V, brings you the ultra fastest driving experience. Dual ball bearings can ensure the smooth and reliable operation of servo.

Ideal for Touring, Drift Car, Boat, Aircraft, Robot, etc.

FEATURES

• Smooth Dual Ball Bearings

• Aluminium CNC Middle Case

• High Precision Titanium Gear

• Long Lifespan Brushless Motor

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Titanium    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40.8*20.2*26.5 mm    Motor Type    Brushless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    44 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL+Plastic    Travel Angel    180° ± 10°

   Wire    TYU 200mm / 22AWG    Wire Color    Black | Red | White

Operating Speed     Stall Torque

0.080 sec/60° @4.8V     10.0 kg·cm (139 oz·in) @4.8V

0.070 sec/60° @6.0V     13.0 kg·cm (180 oz·in) @6.0V

0.065 sec/60° @7.4V     14.0 kg·cm (194 oz·in) @7.4V

0.060 sec/60° @8.4V     15.5 kg·cm (215 oz·in) @8.4V
