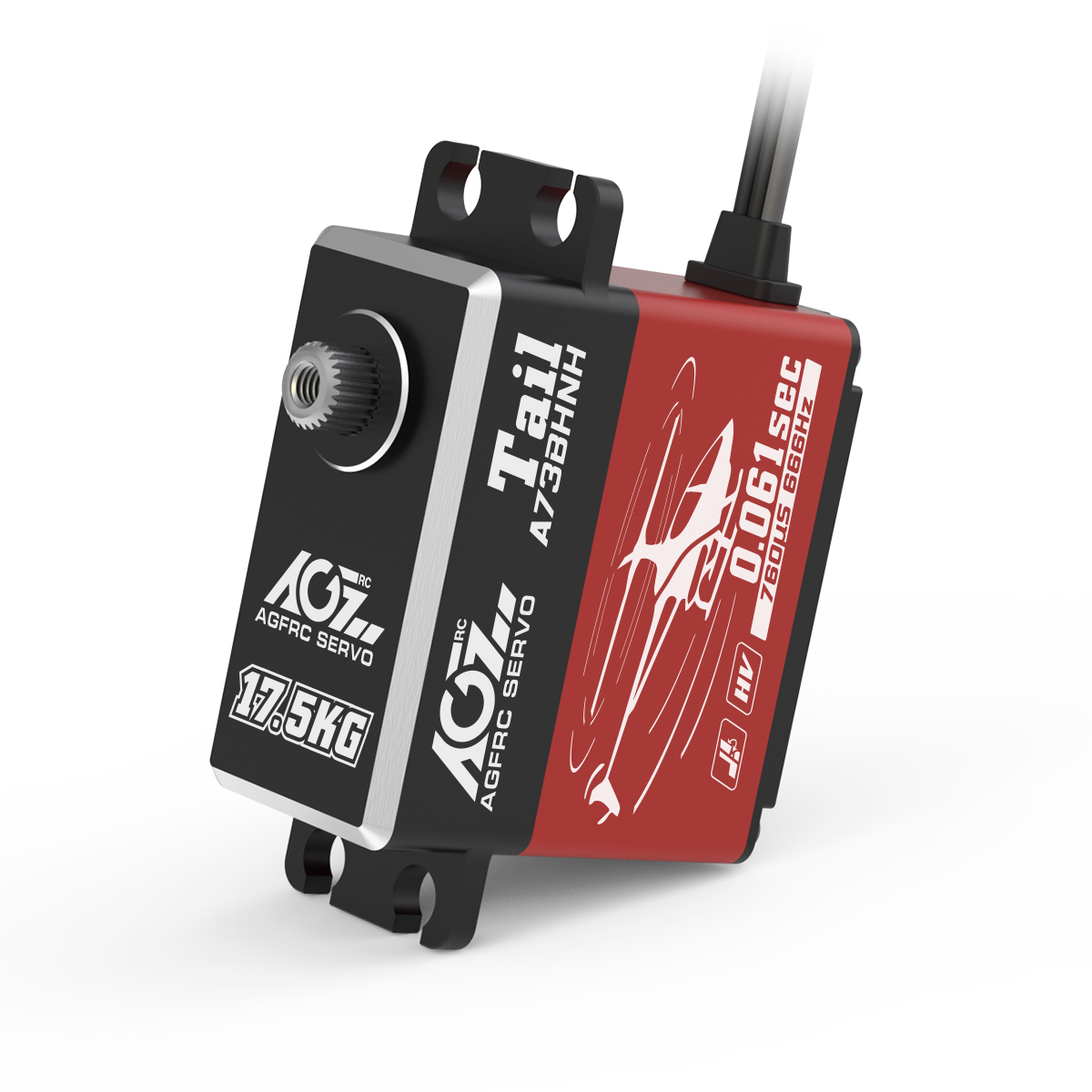

AGFRC A73BHNH Tail lightning fast powerful performance 25T splines standard digital servo for helicopters, designed in CNC metal servo case, servo could keep cool working temperature during use and look clean and tidy. Featured with brushless motor, metal gears and double ball bearings, it has a robust internal structure and greatly improves durability. With 0.068sec speed and 17.5kg high torque at 8.4V and 666Hz high Refresh Rate, it could very quick and accurately respond to each command.
FEATURES
∙ 666Hz High Refresh Rate
∙ Metal Double Ball Bearings
∙ Good stability Brushless Motor
∙ Precision Potentiometer Angle Sensor
∙ High Accuracy Strength Steel+Titanium Gear
∙ High Performance Digital Servo Perfect For 450-700 Class Helicopter
PRODUCT SPECIFICATIONS
Voltage 4.8V ~ 8.4V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 452 ~ 1072 µSec Refresh Rate 760 µS / 666 Hz
Dimension 40*20*37.5 mm Motor Type Brushless
Bearing 2BB Dead Band 2 µSec
Net Weight 73.5 g Gear Spline 25T-ɸ5.92 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire JR 300mm / 22AWG Wire Color Black | Black | White
Operating Speed Stall Torque
0.085 sec/60° @4.8V 14.0 kg·cm (194 oz·in) @4.8V
0.075 sec/60° @6.0V 15.0 kg·cm (208 oz·in) @6.0V
0.068 sec/60° @7.4V 16.5 kg·cm (229 oz·in) @7.4V
0.061 sec/60° @8.4V 17.5 kg·cm (243 oz·in) @8.4V
