AGFRC B53CHLW SERVO PURCHASE LINK

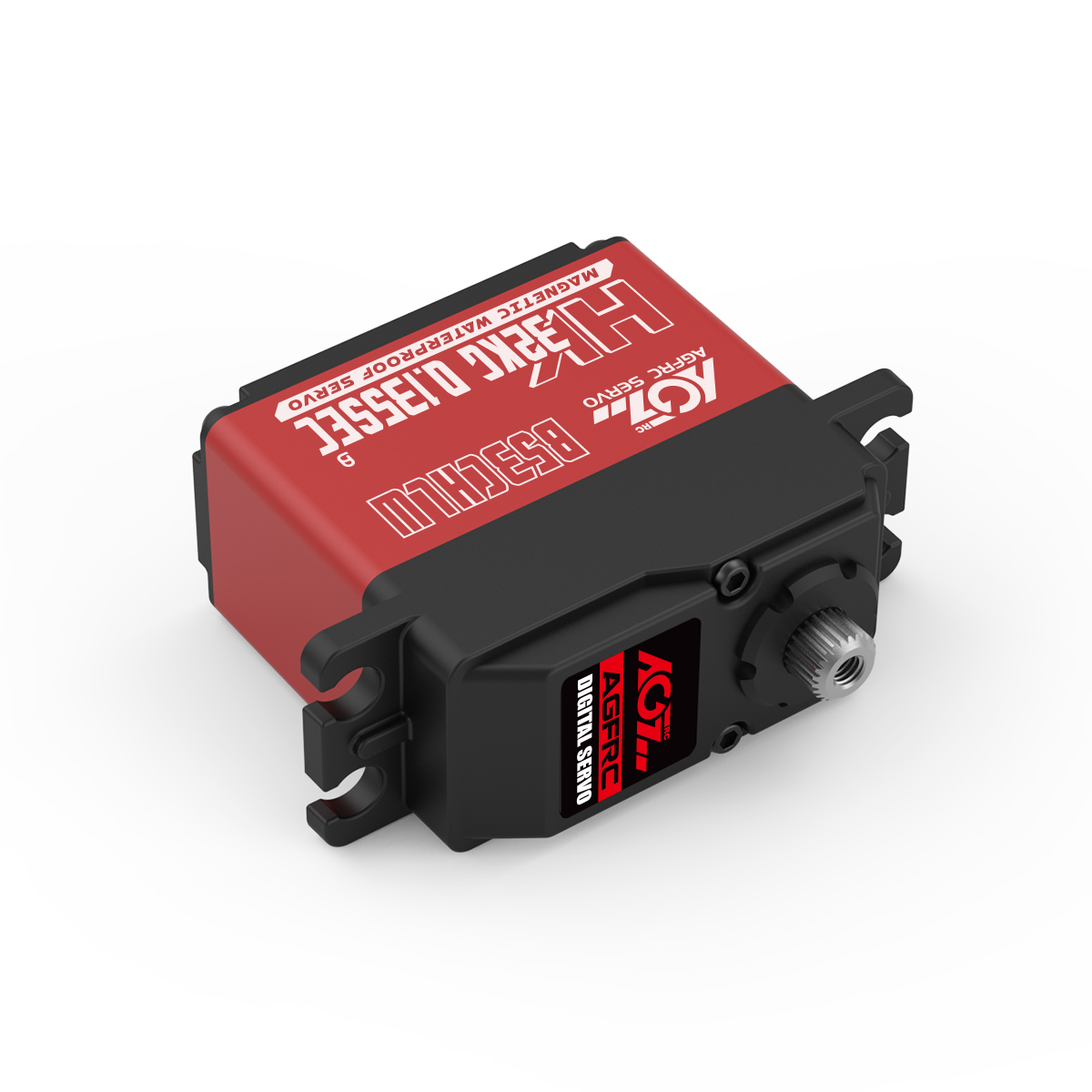

B53CHLW Inherit the advantages of B53CHL V2 Servo. It is newly upgraded with programmable function and IP67 magnetic waterproof function. If you like to customize the parameters and like to use the model near the river with gentle wind and drizzle, B53CHLW is a good choice. Unique dust-proof and splash-proof black and red case design, High strength dual ball bearings and super sturdy gears, It will keep your model working smoothly. It is very suitable for 1/10 Kyosho Ultima RB6 RS Electric Racing Buggy, TRX-4 Sport, E-Revo Monster Truck, Spartan Boat, ect. I believe it can be your reliable partner~
Ideal for 1/10 Kyosho Ultima RB6 RS Electric Racing Buggy, TRX-4 Sport, E-Revo Monster Truck, Spartan Boat, 1/12 On Road, Truck, Crawler, Airplane, Jet, Helicopter, Robot Arm, and Engine etc.
FEATURES
• High Performance Standard Digital Servo
• High Sturdy Steel Gear
• High Quality Coreless Motor
• High Strength Dual Ball Bearings
• Aluminium Middium Case
• 25-Tooth Output Spline
• Programmable digital circuit
• Magnetic Sensor Waterproof IP67
PRODUCT SPECIFICATIONS
Voltage 4.8V ~ 8.4V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 40*20*37.8 mm Motor Type Coreless
Bearing 2BB Dead Band 2 µSec
Net Weight 69.5 g Gear Spline 25T-ɸ5.92 mm
Case Material AL+Plastic Travel Angel 180° ± 10°
Wire JR 360mm / 22AWG Wire Color Black | Black | Grey
Operating Speed Stall Torque
0.180 sec/60° @4.8V 22.0 kg·cm (306 oz·in) @4.8V
0.160 sec/60° @6.0V 26.0 kg·cm (361 oz·in) @6.0V
0.145 sec/60° @7.4V 29.0 kg·cm (403 oz·in) @7.4V
0.135 sec/60° @8.4V 32.0 kg·cm (445 oz·in) @8.4V
