AGFRC A86BUMW SERVO PURCHASE LINK
As a new generation of AGFrc servo, this 4S digital servo features high voltage application. The brushless motor can work well. With smooth operation, incredible efficiency, and low power consumption, make it a perfect match for those who demand the very best for their Crawler Cars, Truggy, Buggy, on or off road application.
The servo A86BUMW which is available to program via the new version AGFRC USB Programmer. If you have doubt for it, please contact us directly for details.
FEATURES
• High Precision Cooling Case
• Wide Voltage Operation
• Magnetic Sensor Waterproof
• Good Performance Brushless Motor
• Available for Parameter Programmable

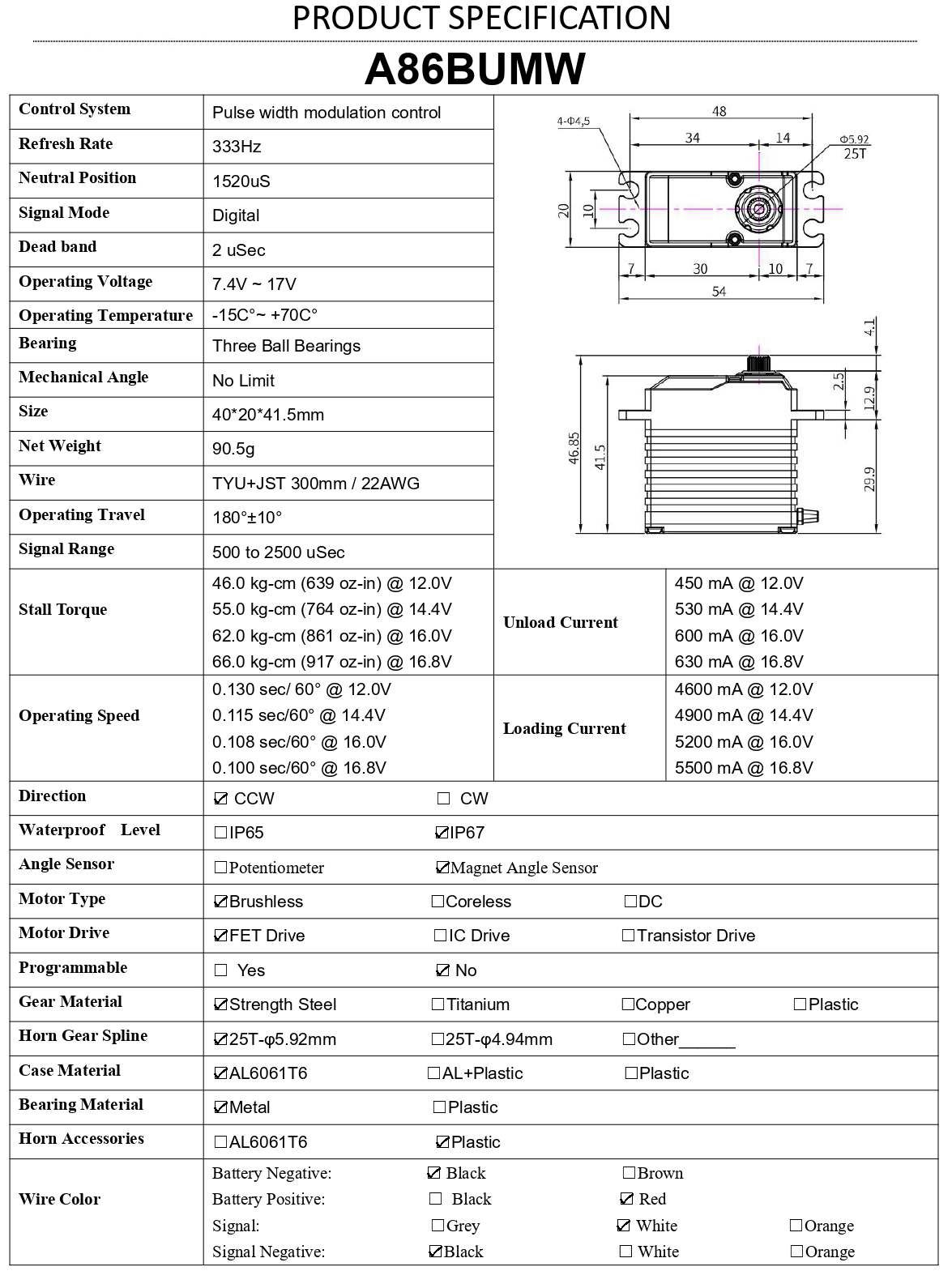

PRODUCT SPECIFICATIONS
Voltage 7.4V ~ 17.0V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 40*20*41.5 mm Motor Type Brushless
Bearing 3BB Dead Band 2 µSec
Net Weight 90.5 g Gear Spline 25T-ɸ5.92 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire TYU+JST 300mm / 22AWG Wire Color Black | Red | White | Black
Operating Speed Stall Torque
0.130 sec/60° @12.0V 46.0 kg·cm (639 oz·in) @12.0V
0.115 sec/60° @14.4V 55.0 kg·cm (764 oz·in) @14.4V
0.108 sec/60° @16.0V 62.0 kg·cm (861 oz·in) @16.0V
0.100 sec/60° @16.8V 66.0 kg·cm (917 oz·in) @16.8V
