AGFRC A75BUMW SERVO PURCHASE LINK
A75BUMW is a budget 4s servo which is designed for the beginner and hobbyists seek for lower price version.It adopts dust-proof and splash-proof CNC shell design, and the magnetic sensor waterproof reaches IP67 grade, which can be used for harsh environments such as rainy days, muddy, sand dunes, snow, streams, and humidity. Neat and wear-resistant 4 PIN wires, allow to direct connect with 3S or 4S LiPo battery. Featured 62KG superb high torque and 0.092Sec fast speed at 16.8V. With the cooperation of a long-life brushless motor and reinforced steel gears, the work is more efficient, precise and smooth. Of course, custom parameter programming is also an essential function. It should be a good choice for your rc crawler and bring you the unprecedented feelings.
Ideal For 1/8 & 1/10 Scale On Road, Off Road, Monster Truck, Crawler, Racing Boat, Large Size Airplane, Helicopter, Robot And Engine etc.
FEATURES
• The Maximum Voltage Can Reach 4s
• High Quality Long Life Span Brushless Motor
• Upgraded Neat And Wear-Resistant 4 PIN Wire
• Dust-Proof And Splash-Proof CNC Shell Design
• Silky Smooth Double Ball Bearings
• High-Precision Reinforced Steel Gears
• High Accuracy Magnetic Sensor Waterproof IP67
• Supports Programmable Digital Circuits

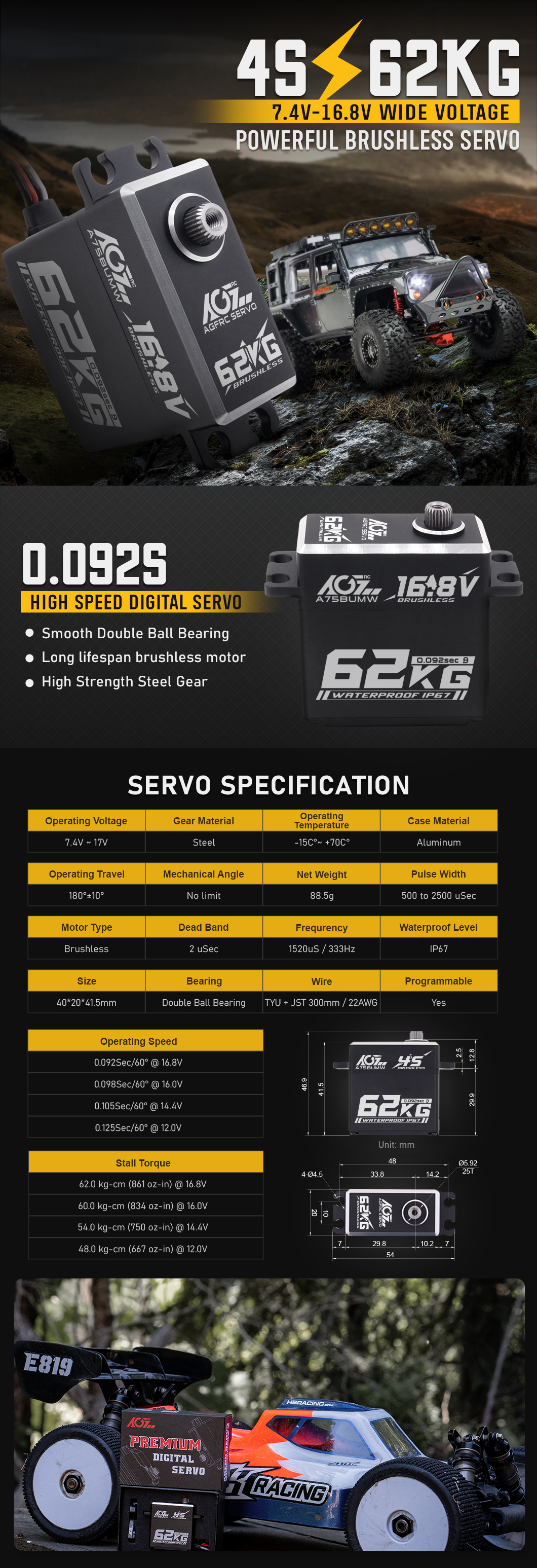

PRODUCT SPECIFICATIONS
Voltage 7.4V ~ 17.0V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 40*20*41.5 mm Motor Type Brushless
Bearing 2BB Dead Band 2 µSec
Net Weight 88.5 g Gear Spline 25T-ɸ5.92 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire TYU+JST 300mm / 22AWG Wire Color Black | Red | White | Black
Operating Speed Stall Torque
0.125 sec/60° @12.0V 48.0 kg·cm (667 oz·in) @12.0V
0.105 sec/60° @14.4V 54.0 kg·cm (750 oz·in) @14.4V
0.098 sec/60° @16.0V 60.0 kg·cm (834 oz·in) @16.0V
0.092 sec/60° @16.8V 62.0 kg·cm (861 oz·in) @16.8V
