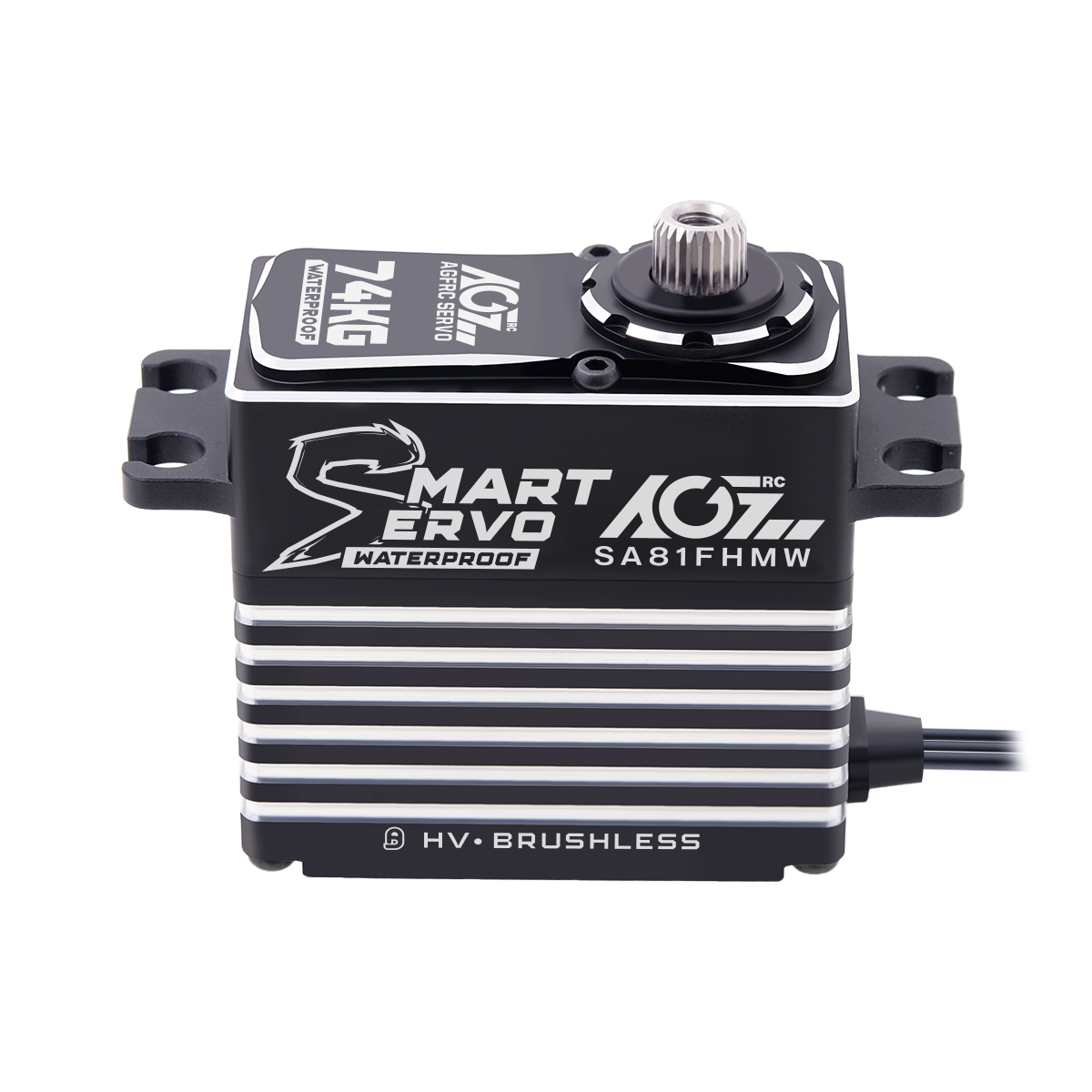

AGFRC SA81FHMW SERVO Regular Mode Continuous Rotation Mode PURCHASE LINK
SA81FHMW smart servo, not only has a brand-new exterior design, but also a completely different internal structure from before. It have fully upgraded to the 4-Pole brushless motor high voltage circuit board, which can ensure output the 74kg-cm maximum torque and bear higher current with 38mm height. At the same time, adopt bigger size metal ball bearings and the matching steel gears of servo also be upgraded to a more suitable size, to make the servo work more smoothly and reliably. Programmable smart feature which allow the servo to be used in two modes: Regular Servo & Winch servo. Since it is a magnetic sensor waterproof IP67 servo, no environment will be an obstacle to your fun.
Ideal for On-Road, Off-Road and Truck cars, Plane, Robot and Engine etc.
FEATURES
• Full CNC Aluminium Shell
• Smoothly 4 Ball Bearings
• Super Strong 4-Pole Brushless Motor
• High Strength Steel Gears
• Magnetic Angle Sensor Waterproof IP67
• Programmable Smart Function for Regular and Winch
PRODUCT SPECIFICATIONS
Voltage 4.8V ~ 8.4V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz

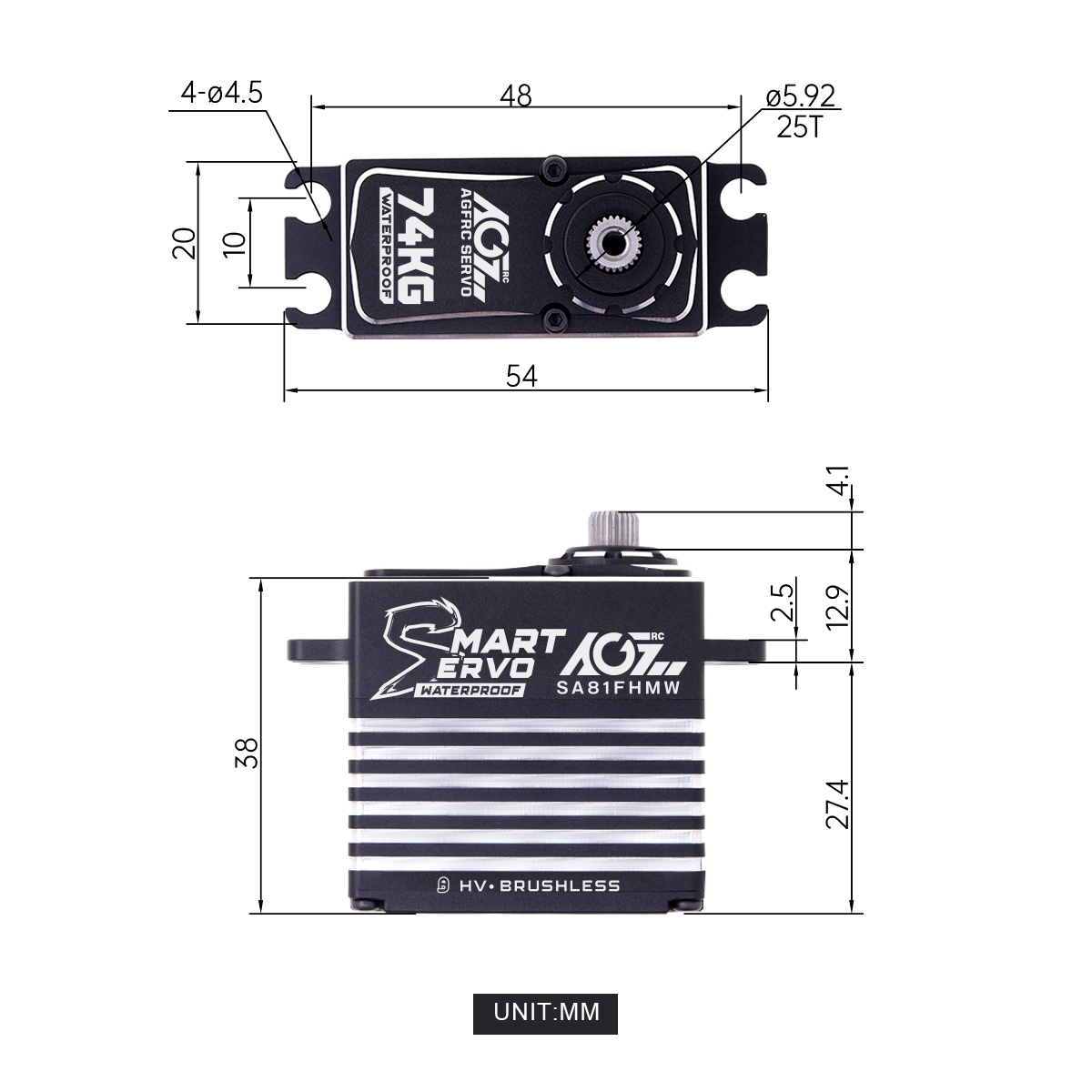

Dimension 40*20*38 mm Motor Type 4-Pole Brushless
Bearing 4BB Dead Band 2 µSec
Net Weight 85 g Gear Spline 25T-ɸ5.92 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire TYU 300mm / 22AWG Wire Color Black | Black | Grey
Operating Speed Stall Torque
0.190 sec/60° @4.8V 45 kg·cm (625 oz·in) @4.8V
0.165 sec/60° @6.0V 55 kg·cm (764 oz·in) @6.0V
0.135 sec/60° @7.4V 65 kg·cm (903 oz·in) @7.4V
0.125 sec/60° @8.4V 74 kg·cm (1028 oz·in) @8.4V
