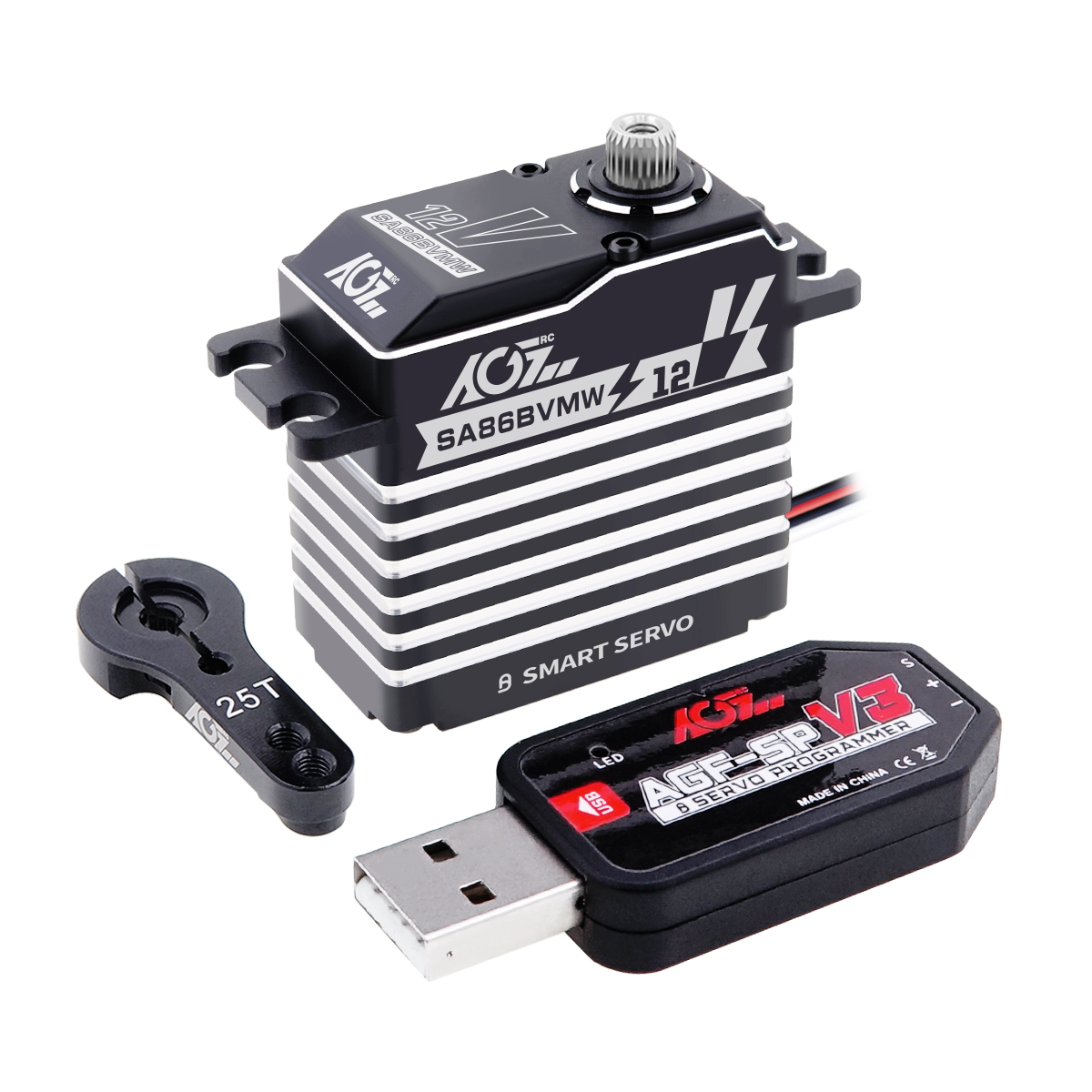

AGFRC SA86BVMW SERVO            PURCHASE LINK

As 2s lipo application cannot meet more and more people's usage, this 12V Series Smart Servo especially designed for higher voltage application, such as R/C Crawler Cars, Airplanes, Boats, Robots or Industrial/Medical applications.

FEATURES

• Smooth- Ball bearings to make it more powerful and smoother

• Reliable- High quality brushless motor

• Waterproof- Magnetic position sensor

• Precision- CNC aluminum housing

PRODUCT SPECIFICATIONS

   Voltage    7.4V ~ 17.0V    Direction    CCW

   Gear Material    Strength Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40*20*41.5 mm    Motor Type    Brushless

   Bearing    3BB    Dead Band    2 µSec

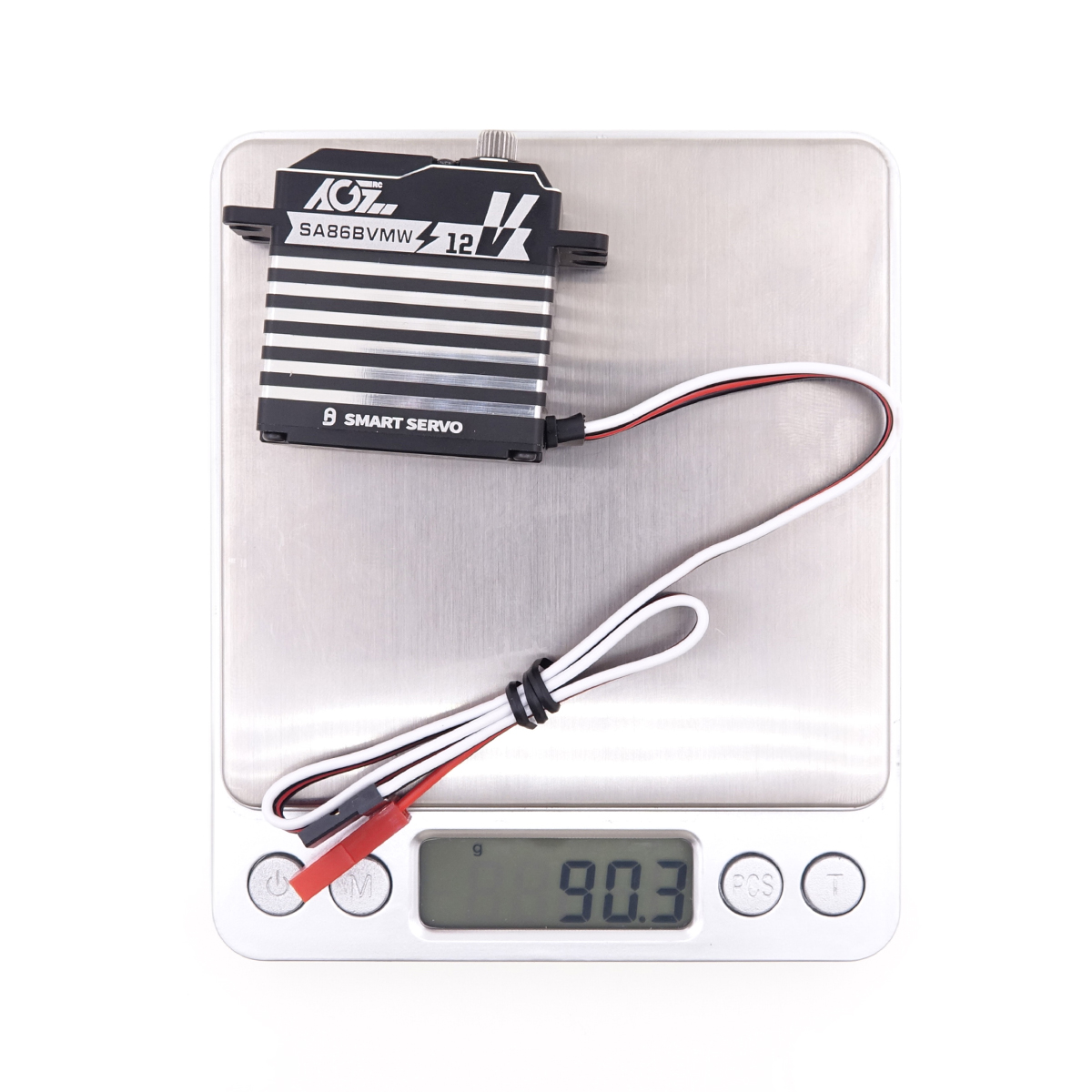

   Net Weight    90.5 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL6061T6    Travel Angel    180 ± 10°

   Wire    TYU+JST 300mm / 22AWG    Wire Color    Black | Red | White | Black

Operating Speed                Stall Torque

0.125 sec/60° @12.0V            65.0 kg·cm (903 oz·in) @12.0V

0.110 sec/60° @14.4V                72.0 kg·cm (1000 oz·in) @14.4V

0.100 sec/60° @16.0V                78.0 kg·cm (1084 oz·in) @16.0V

0.095 sec/60° @16.8V                80.0 kg·cm (1112 oz·in) @16.8V
