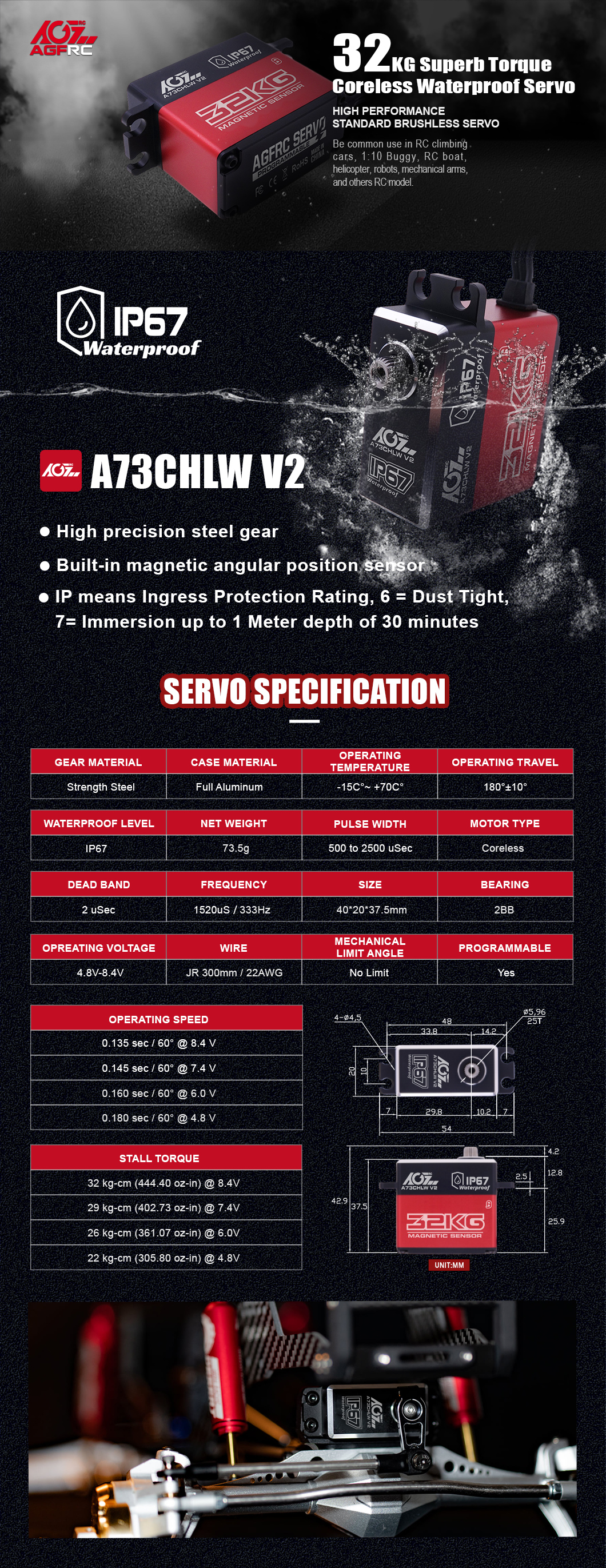

AGFRC A73CHLW V2 SERVO            PURCHASE LINK

A73CHLW V2 version is newly upgraded. It is suitable for a variety of harsh environments such as snow, rain, wet jungle, seaside, sand dunes, and mud, etc. While retaining the advantages of the original 32KG high torque and high voltage 8.4V, the V2 version has improved the following performance:

• Motor----Enhanced high-efficiency and long-life coreless motor

• Gear----High-precision and strong reinforced steel gears

• Gear Shaft----Enhance gear shaft

With these supports, the servos run more reliably and smoothly.

Ideal for Car, Airplane, Helicopter and Engine etc.

FEATURES

• High Performance Standard Digital Servo

• High Precision Magnetic Sensor

• Reinforced Steel Gear And Pin Shaft

• High Efficiency Coreless Motor

• High Strength Ball Bearing

• Fast Cooling Aluminum Case

PRODUCT SPECIFICATIONS Programmable

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Strength Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40*20*37.5 mm    Motor Type    Coreless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    73 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL6061T6    Travel Angel    180 ± 10°

   Wire    JR 300mm / 22AWG    Wire Color    Black | Black | Grey

Operating Speed     Stall Torque

0.180 sec/60° @4.8V     22 kg·cm (306 oz·in) @4.8V

0.160 sec/60° @6.0V     26 kg·cm (361 oz·in) @6.0V

0.145 sec/60° @7.4V     29 kg·cm (403 oz·in) @7.4V

0.135 sec/60° @8.4V     32 kg·cm (444 oz·in) @8.4V
