AGFRC A06CLS V2 (15T) PURCHASE LINK

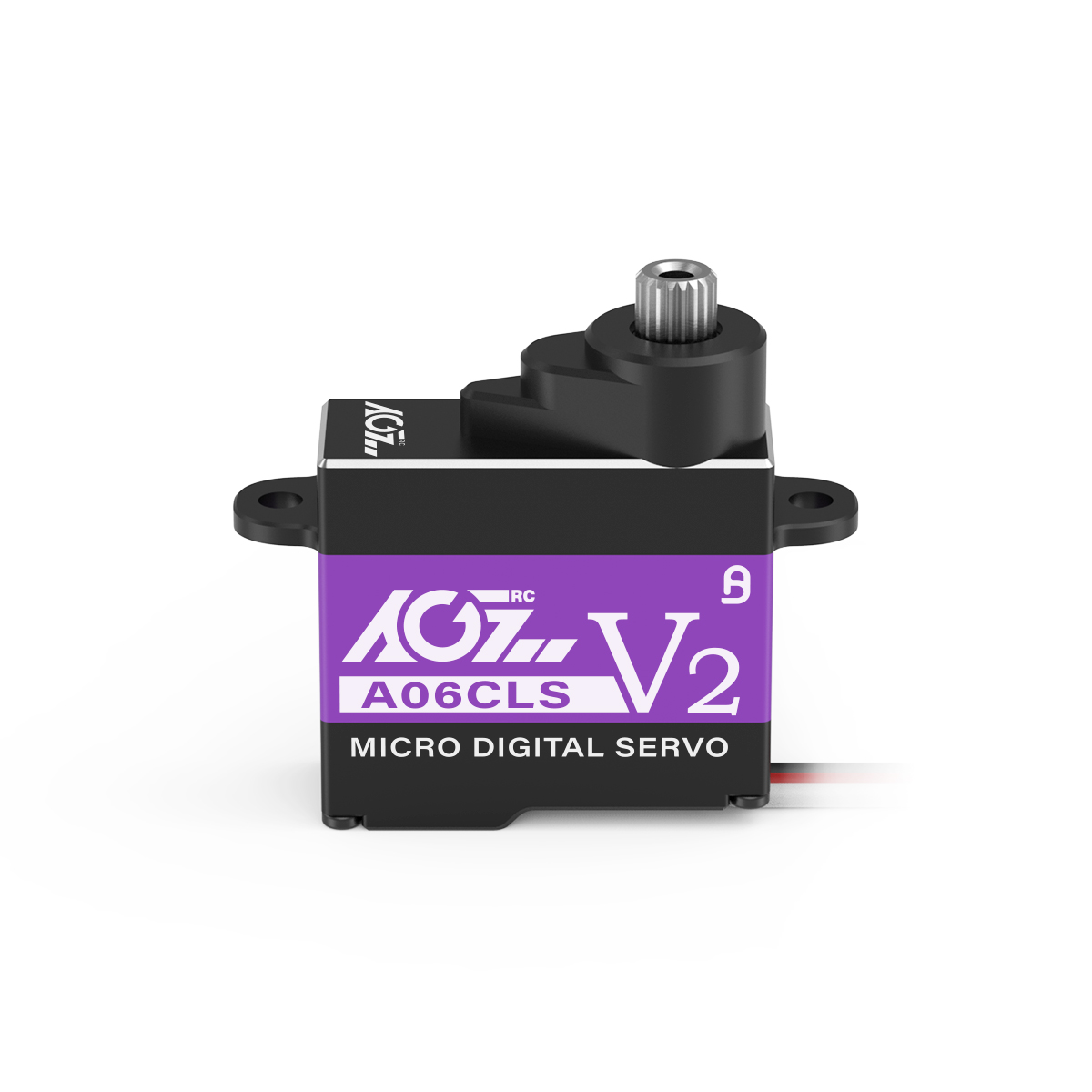

AGFRC A06CLS V2 is the upgrade version of the A06CLS servo, with high-voltage features. This servo is compatible to be used for use with small-sized airplanes and gliders. 7g super lightweight with a full CNC machining case. 2 µSec wide voltage which produces 3KG high torque and 0.052Sec super spec at 8.4V. JST and JR plugoptions allow them to be used for different models. Of course, the highlight "programmable" feature is still continuing for this lovely micro servo. Black edition and Purple editionare available.
There are 15T and 20T spline option, if you care about the output spline size, pls mark it while placing the order.
FEATURES
• Fast CNC Aluminum Case
• High Quality Coreless Motor
• High Accuracy Titanium Gear
• Supports Programmable Digital Circuits
PRODUCT SPECIFICATIONS
Gear Material Titanium Temperature 15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 20*8*17.8 mm Motor Type Coreless
Bearing BB Dead Band 2 µSec
Net Weight 7.0 g Gear Spline 15T-ɸ4.0 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Operating Speed Stall Torque
0.075 sec/60° @4.8V 1.8 kg·cm (25 oz·in) @4.8V
0.066 sec/60° @6.0V 2.2 kg·cm (30 oz·in) @6.0V
0.058 sec/60° @7.4V 2.6 kg·cm (36 oz·in) @7.4V
0.052 sec/60° @8.4V 3.0 kg·cm (41 oz·in) @8.4V
