AGFRC A27CHR SERVO PURCHASE LINK

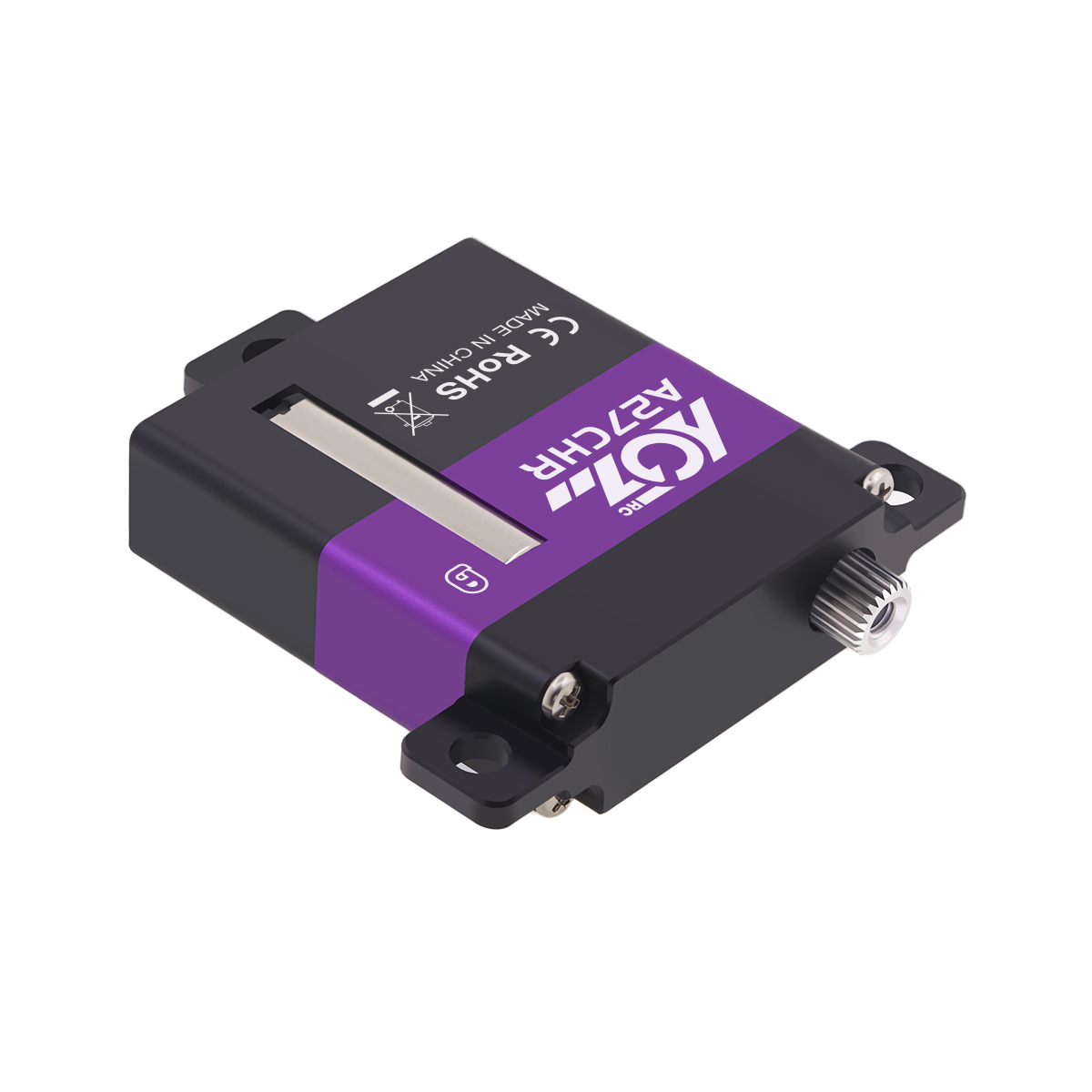

AGFRC wing servo series has added a new member A27CHR. It adopts CNC shell design, and can reach a large torque of 11KG and a speed of 0.11Sec when the voltage is as high as 8.4V. Moreover, the thickness of this high-performance programmable digital wing servo is only 10mm, and the lightweight and thin design saves more space and weight. The high quality coreless motor and reliable dual ball bearing cooperate with the strong reinforced steel gear, It is believed that the model will be very smooth and stable when using the A27CHR.
Ideal For Airplane, Glider, Drone, Jets, Float Plane, Sport Plane, Cars, Boats, etc.
FEATURES
• High Performance Digital servo
• Super Strong Steel Gear
• High Quality Coreless Motor
• Ultra Reliable Dual Ball Bearing
• Full CNC Aluminium Case Design
PRODUCT SPECIFICATIONS
Voltage 4.8V ~ 8.4V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 30*10*35.5 mm Motor Type Coreless
Bearing 2BB Dead Band 2 µSec
Net Weight 27.6 g Gear Spline 25T-ɸ4.94 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire TYU 180mm / 26AWG Wire Color Black | Red | White
Operating Speed Stall Torque
0.170 sec/60° @4.8V 7.5 kg·cm (104) @4.8V
0.150 sec/60° @6.0V 8.2 kg·cm (114 oz·in) @6.0V
0.120 sec/60° @7.4V 10.0 kg·cm (139 oz·in) @7.4V
0.110 sec/60° @8.4V 11.0 kg·cm (153 oz·in) @8.4V
