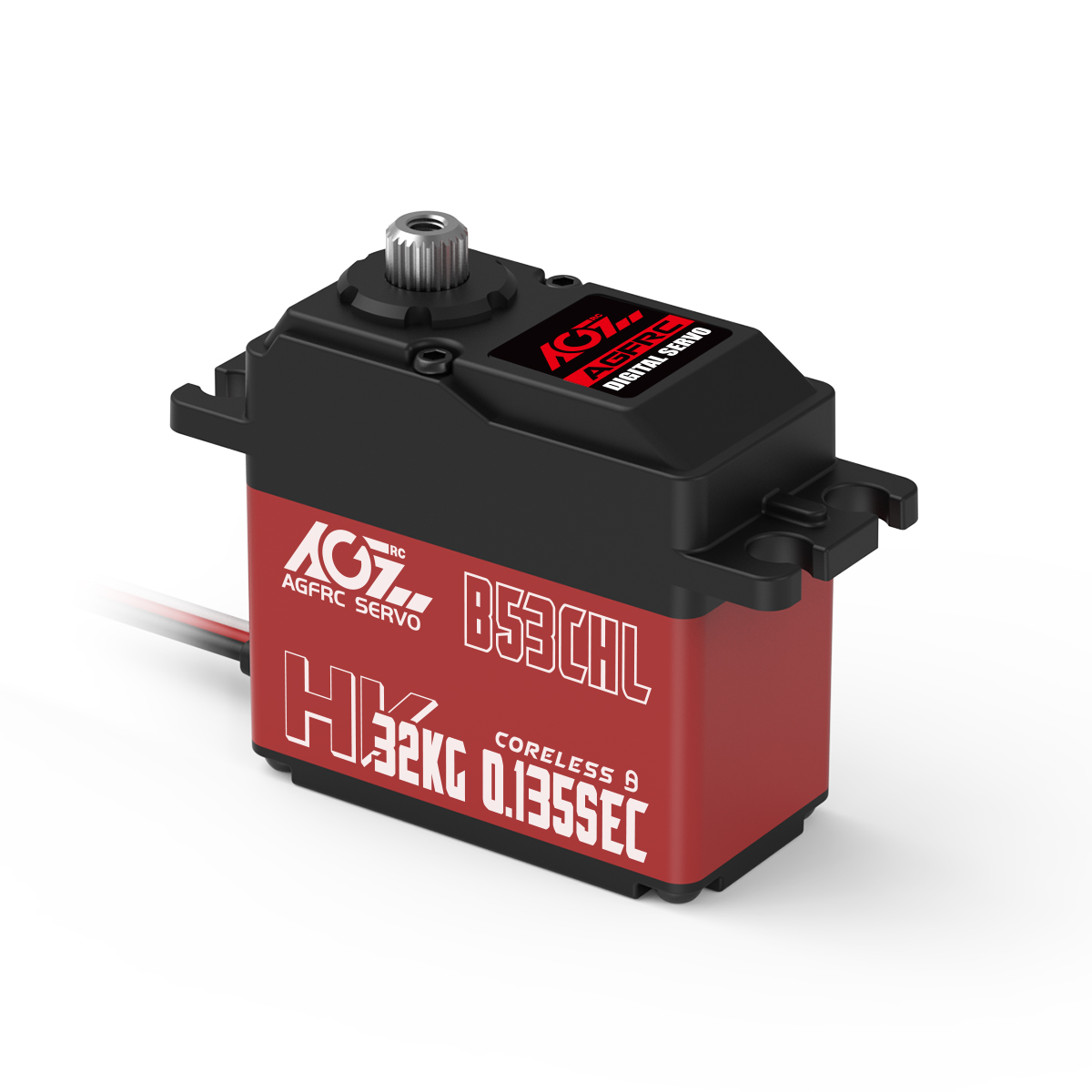

AGFRC B53CHL V2 SERVO            PURCHASE LINK

B53CHL V2 it is a new upgrade version of B53CHL Servo. It not only has a large torque of 32KG, there is also a high voltage of up to 8.4V. It appeared in front of everyone with a brand new look. In addition, it also adds a new programmable function, Very suitable for model enthusiasts who like custom parameters. Steel gears and double bearings combined with high quality coreless motors.

FEATURES

• High Performance Standard Digital Servo

• High Quality Coreless Motor

• High Strength Dual Ball Bearings

• Aluminium Middium Case

• Programmable digital circuit

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Strength Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40*20*37.8 mm    Motor Type    Coreless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    69.5 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL+Plastic    Travel Angel    180° ± 10°

   Wire    JR 300mm / 22AWG    Wire Color    Black | Red | White

Operating Speed     Stall Torque

0.180 sec/60° @4.8V     22.0 kg·cm (306 oz·in) @4.8V

0.160 sec/60° @6.0V     26.0 kg·cm (361 oz·in) @6.0V

0.145 sec/60° @7.4V     29.0 kg·cm (403 oz·in) @7.4V

0.135 sec/60° @8.4V     32.0 kg·cm (445 oz·in) @8.4V
