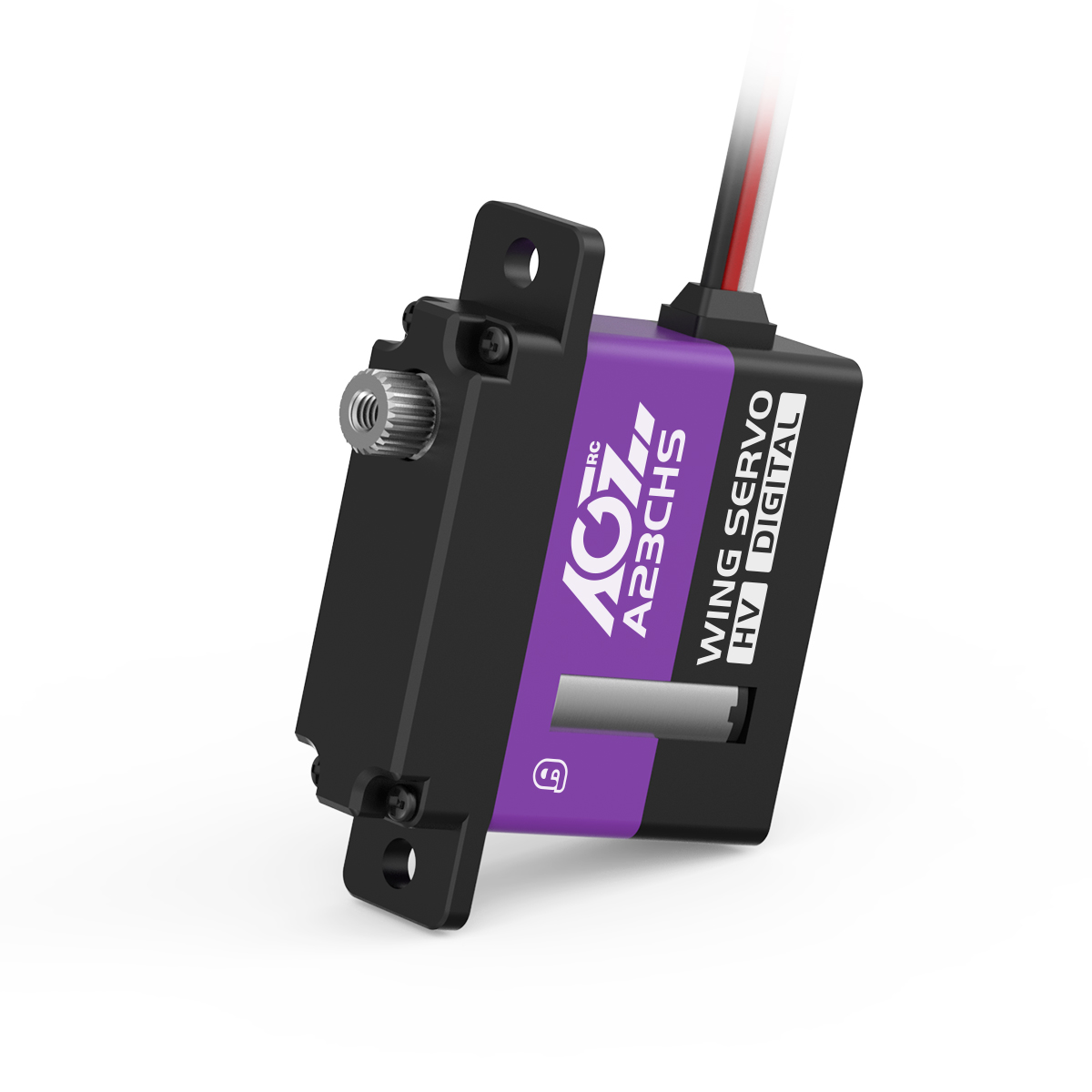

A23CHS 10mm Thickness HV 7KG Coreless Digital Mini Glider Servo
Item Name:
A23CHS
Weight:
23g
Voltage:
4.8-8.4V
Retail Price:
US$44.99/PC
Application:
RC Helicopter, Airplane, Car, Robot, Boat

Feature

High Performance Digital Wing Servo

High Precision Metal Gears

High Quality Coreless Motor

Dual Ball Bearing

Full CNC Aluminium Hulls and Structure

Ideal for Airplane and Glider


Specification

A23CHS

Operating Voltage: 6.0-8.4 V

Operating speed: 0.12sec/60°@ 6.0V

Operating speed: 0.10sec/60°@ 7.4V

Operating speed: 0.09sec/60°@ 8.4V

Stall Torque: 5.2 kg-cm (72.21 oz-in) @ 6.0V

Stall Torque: 6.5 kg-cm (90.26 oz-in) @ 7.4V

Stall Torque: 7.0 kg-cm (97.21 oz-in) @ 8.4V

Gear: Metal

Motor: CLS

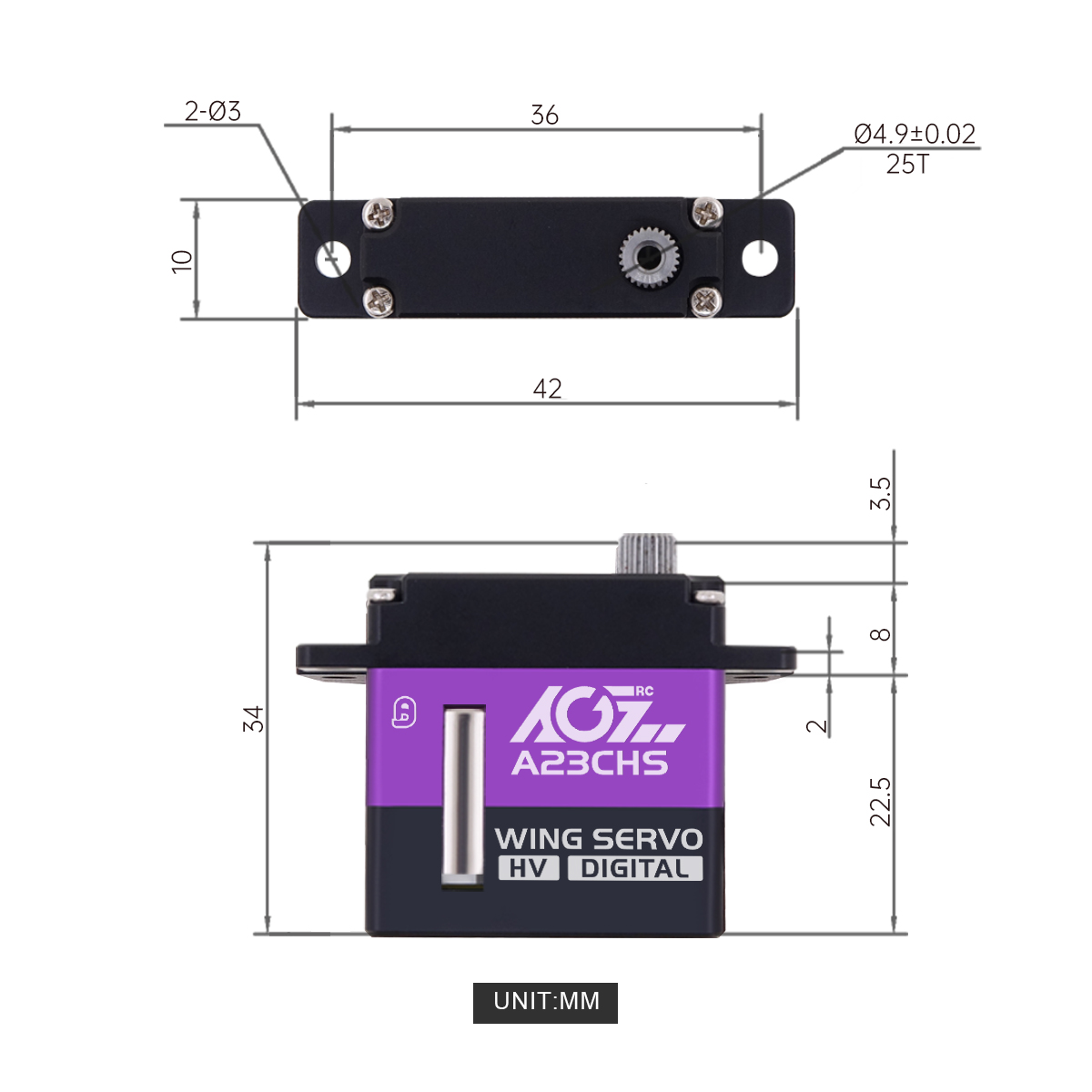

Size: 30*10*30.5mm (1.18 x 0.39 x 1.20 in)

Weight: 23g

Connector Wire: JR 180mm


A23CHS-7

A23CHS 10mm Thickness HV 7KG Coreless Digital Mini Glider Servo
