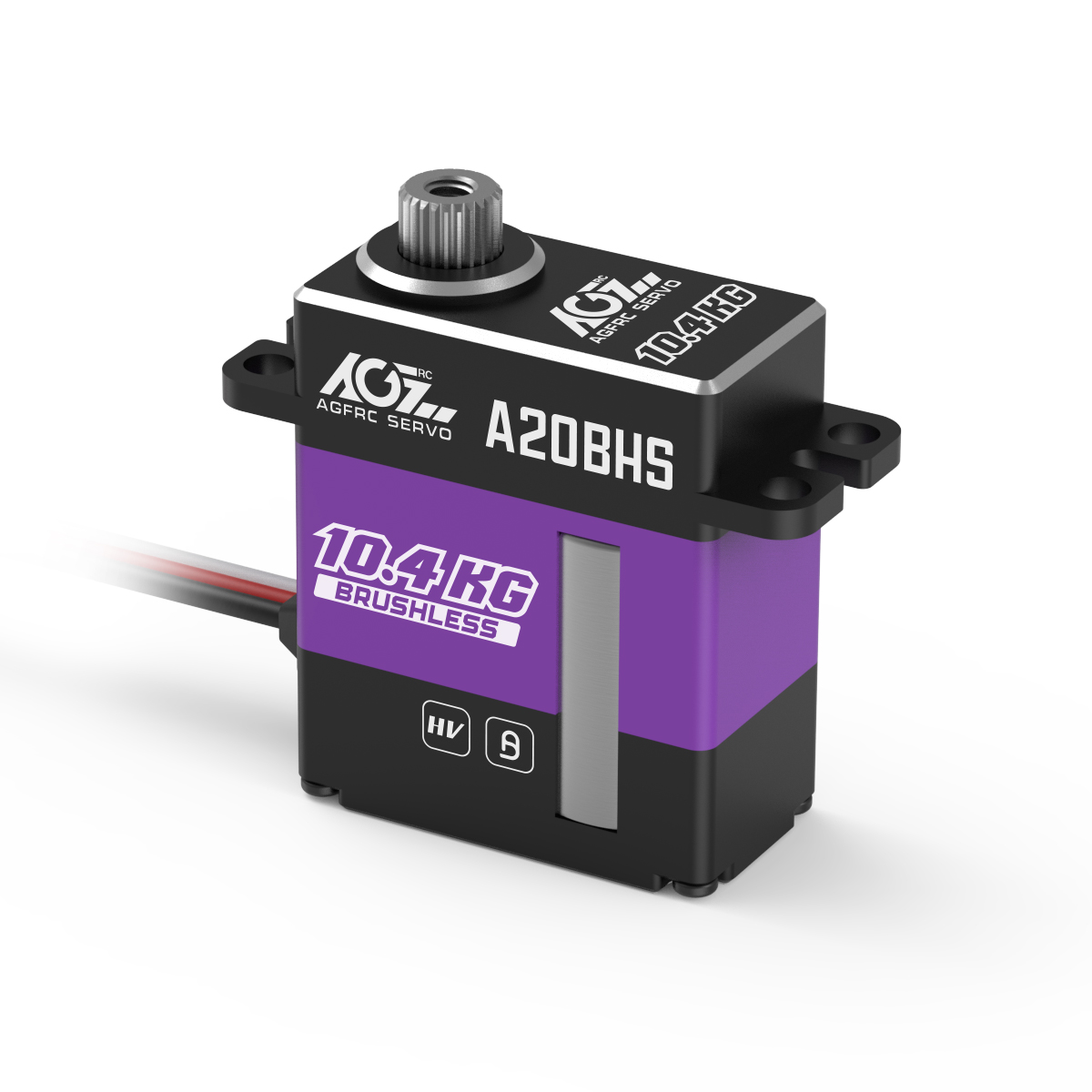

As a new arrival of AGFRC mini servo, A20BHS can reach the torque of 10.4kg and 0.055sec fast speed. Full CNC aluminium case to provide the good heat dissipation conditions, featuring a digital programmable circuit high voltage compatible. The biggest special about this new digital programmable servo A20BHS is that it used a newly designed brushless motor, which AGFRC first released and marketed. With the more efficient brushless motor and high accuracy, this high-performance servo A20BHS is perfect for RC cars and other applications.
There are 15T and 20T spline option, if you care about the output spline size, pls mark it while placing the order.
FEATURES
• High Performance Programmable Mini Servo
• Longer Lifespan Brushless Motor
• Sturdy Metal Double Ball Bearings
• Special Small Size Design
• High-Voltage Capable
PRODUCT SPECIFICATIONS
Gear Material Strength Steel Temperature 15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 23*12*27.5 mm Motor Type Brushless
Bearing 2BB Dead Band 2 µSec
Net Weight 21.0 g Gear Spline 25T-ɸ4.94 mm
Case Material AL6061T6 Travel Angel 180 ± 10°
Wire TYU 180mm / 26AWG Wire Color Black | Red | White
Operating Speed Stall Torque
0.085 sec/60° @4.8V 6.50 kg·cm (90 oz·in) @4.8V
0.075 sec/60° @6.0V 7.80 kg·cm (108 oz·in) @6.0V
0.062 sec/60° @7.4V 9.20 kg·cm (127 oz·in) @7.4V
0.055 sec/60° @8.4V 10.40 kg·cm (144 oz·in) @8.4V
