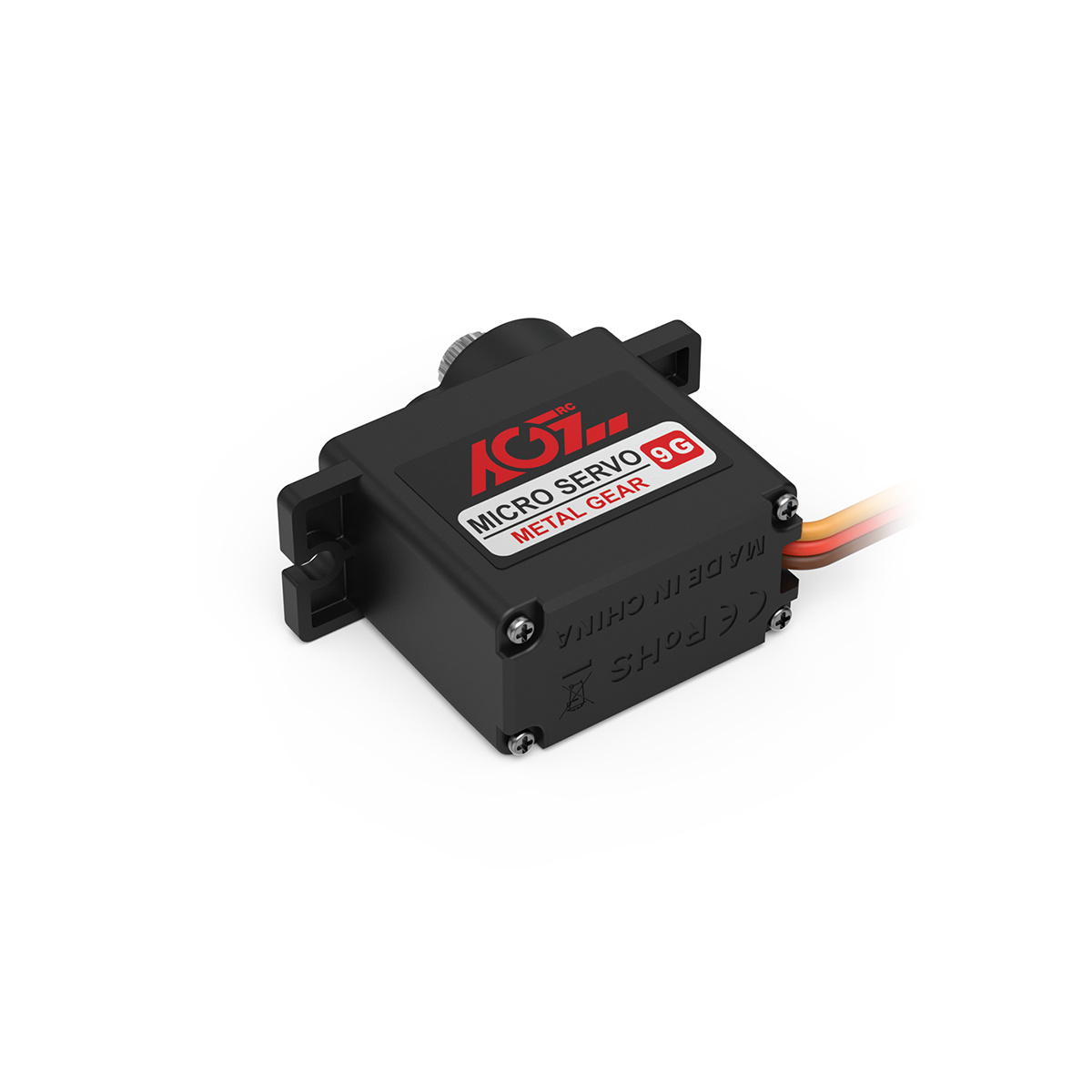

AGFRC B9DLM SERVO            PURCHASE LINK

AGFRC B9DLM is a 9g digital high performance micro servo, high durable metal gears and 21T steel spline, which produce 2.2KG torque and 0.11Sec speed at 6V. It is allowed to work between -15℃ to 70℃ environment temperature. 180° maximum operation angle can meet most of requirements, perfect suit for most small size RC Aircraft, Car, Helicopter, Robot etc.

Ideal for Small Size Airplane, Helicopter, Fixed Wing Aircraft, Car, Robot.

FEATURES

• High Performance Digital Servo

• Upgrade Reliable Steel Gear

• High Precision Metal Gear Structure

• High Quality Brushed Motor

• Ideal for Small Size Airplane, Helicopter

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 6.0V    Direction    CCW

   Gear Material    Steel | Copper    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    23*12.1*21.4 mm    Motor Type    DC

   Bearing    BB    Dead Band    4 µSec

   Net Weight    11 g    Gear Spline    21T-ɸ4.94 mm

   Case Material    Plastic    Travel Angel    180° ± 10°

   Wire    JR 180mm / 26AWG    Wire Color    Brown | Red | Orange

Operating Speed     Stall Torque

0.130 sec/60° @4.8V     1.8 kg·cm (25 oz·in) @4.8V

0.110 sec/60° @6.0V     2.2 kg·cm (30 oz·in) @6.0V
