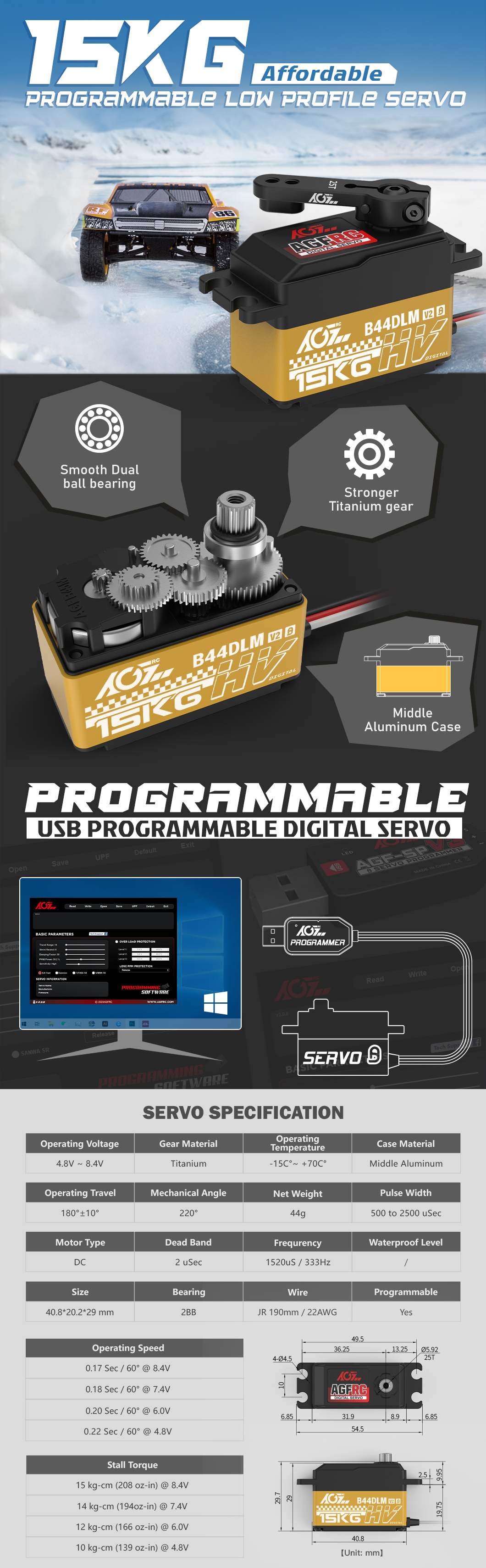

AGFRC B44DLM V2 SERVO            PURCHASE LINK

AGFRC new product B44DLM V2 15.0KG torque low-profile programmableservo are designed with plastic and CNC case, and their good airtightness can prevent dust and splashes. 8.4V high voltage and 0.17Sec speed are very suitable for drift car competition, Touring car, On Road, Pan car, etc. If you need parameter programming, you can use it with the AGF-SPV2 or AGF-SPV3 programming card.

Ideal For Drift Car, Boat, Aircraft, Robot.

FEATURES

• High Performance Low Profile Digital Servo

• High Precision Titanium Gear

• Smooth Dual Ball Bearing

• Aluminium Middle Case Design

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Titanium    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    40.8*20.2*29.0 mm    Motor Type    DC

   Bearing    2BB    Dead Band    3 µSec

   Net Weight    44 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL+Plastic    Travel Angel    180° ± 10°

   Wire    JR 190mm / 22AWG    Wire Color    Black | Red | White

Operating Speed     Stall Torque

0.220 sec/60° @4.8V     10.0 kg·cm (139 oz·in) @4.8V

0.200 sec/60° @6.0V     12.0 kg·cm (166 oz·in) @6.0V

0.180 sec/60° @7.4V     14.0 kg·cm (194 oz·in) @7.4V

0.170 sec/60° @8.4V     15.0 kg·cm (208 oz·in) @8.4V
