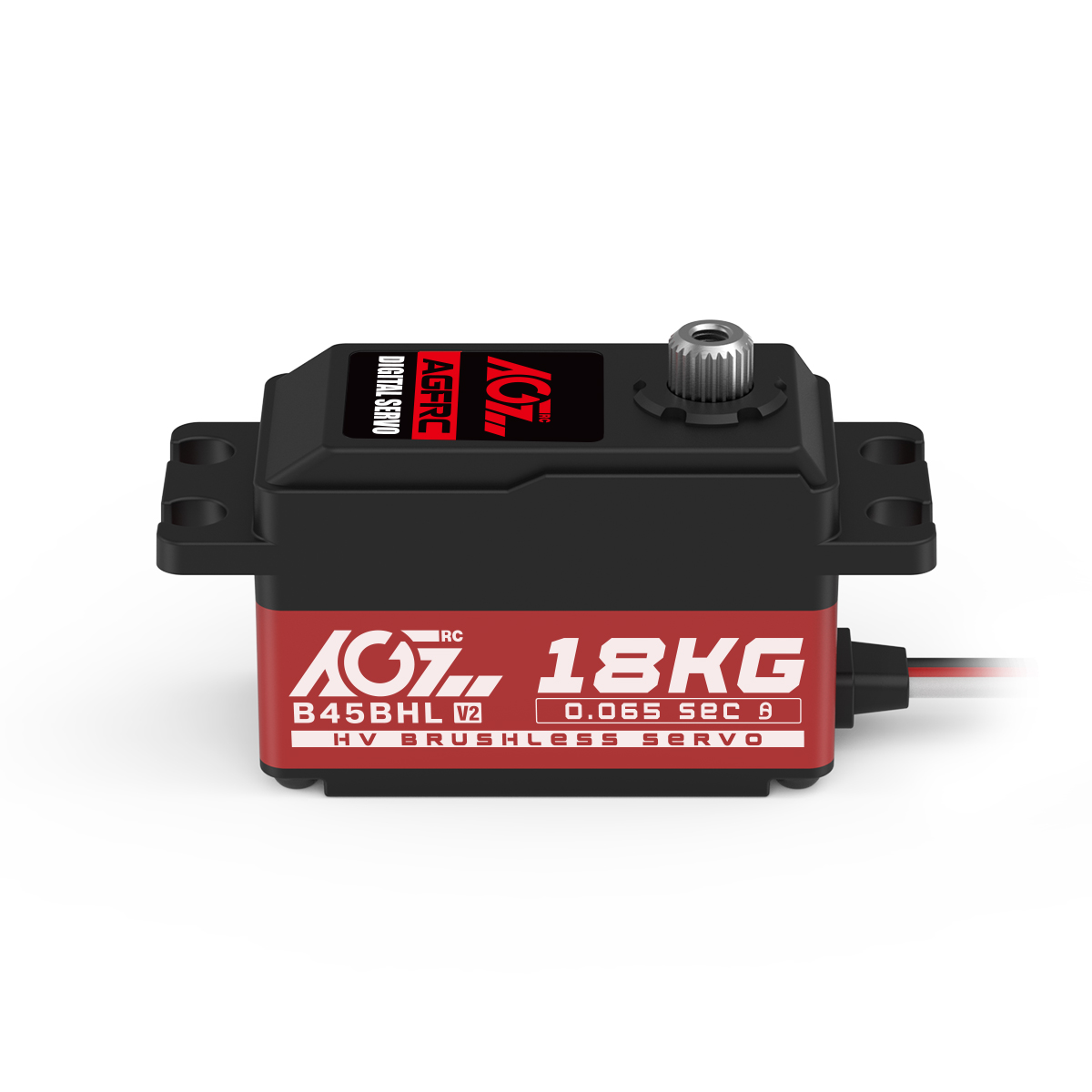

AGFRC B45BHL V2 programmable digital low profile Servo, with the plastic case of top and bottom, CNC aluminium middle case, and 4.8-8.4V nominal operating voltage. The brushless motor design to provide the 18kg-cm high torque and 0.065sec extremely fast response at 8.4V. High-precision combination of steel gear and titanium gears to make sure the servo high durability and smooth running. Like most regular servos, there are operating travel angle is 180 degree, that means that it can move anywhere between 0-180 degree and the mechanical angle can even reach 220 degree. If your installation position is compact and has high requirements for speed and torque, then you should have a try of this one.
Ideal for 1/10 1/12 On-Road, Off-Road and Truck cars, Helicopter, Plane, Robot Arm and Engine etc.
FEATURES
• Metal Double Ball Bearings
• Splash-proof And Dust-proof
• Plastic And CNC Aluminium Shell
• Programmable Digital Low Profile Servo
• More Durable Steel Gear And Titanium Gears
• Long-life Span And Reliable Brushless Motor
PRODUCT SPECIFICATIONS Programmable
Voltage 4.8V ~ 8.4V Direction CCW
Gear Material Strength Steel Temperature -15°C ~ +70°C
Pulse Width 500 ~ 2500 µSec Refresh Rate 1520 µS / 333Hz
Dimension 40.8*20.2*26.5 mm Motor Type Brushless
Bearing 2BB Dead Band 2 µSec
Net Weight 48 g Gear Spline 25T-ɸ5.92 mm
Case Material AL+Plastic Travel Angel 180 ± 10°
Wire JR 190mm / 22AWG Wire Color Black | Black | Grey
Operating Speed Stall Torque
0.105 sec/60° @4.8V 12.0 kg·cm (166 oz·in) @4.8V
0.090 sec/60° @6.0V 14.5 kg·cm (201 oz·in) @6.0V
0.075 sec/60° @7.4V 16.0 kg·cm (222) @7.4V
0.065 sec/60° @8.4V 18.0 kg·cm (250 oz·in) @8.4V
