AGFRC A50BHL SERVO        PURCHASE LINK

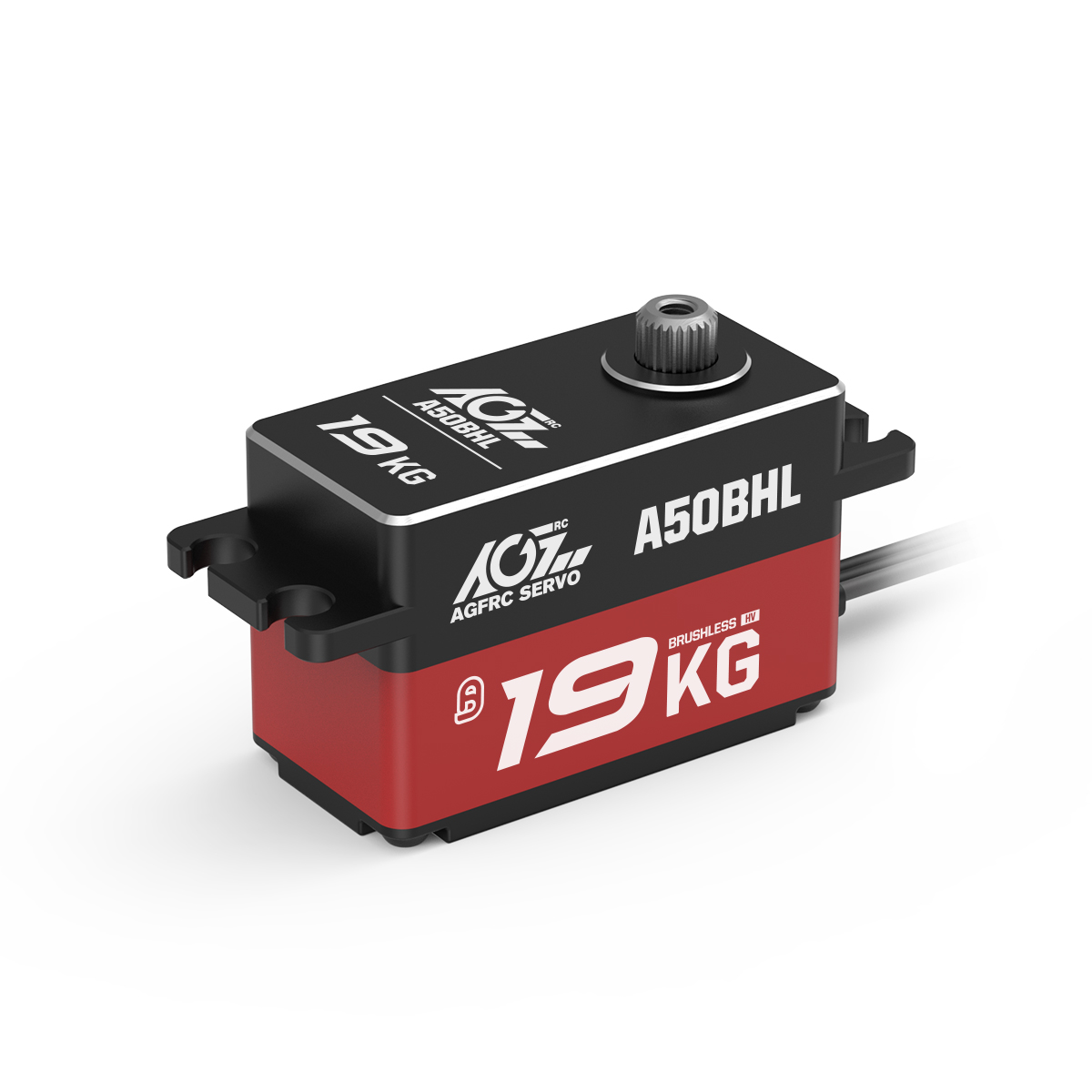

The A50BHL brushless programmable low profile servo is one of the most popular products for 1/10 1/12 drift car enthusiasts. Driven by 2S high voltage, its torque can be as high as 19KG, and the fastest speed can reach 0.073Sec. The CNC aluminum casing is designed to be thin and light, but it is small and has high performance. In addition, high-precision steel gears and silk-smooth dual ball bearings can effectively ensure the smooth operation of the servo. Bring you a drifting experience like never before.

Ideal for 1/10, 1/12 On Road, Touring, Drifting, Airplane, Boat, Robot etc.

FEATURES

• High Performance Low Profile Digital Servo

• High Precision Steel Gear

• High Quality Brushless Motor

• Reliable Dual Ball Bearing

• Aluminium Top and Middle Part

• Programmable Digital Circuit

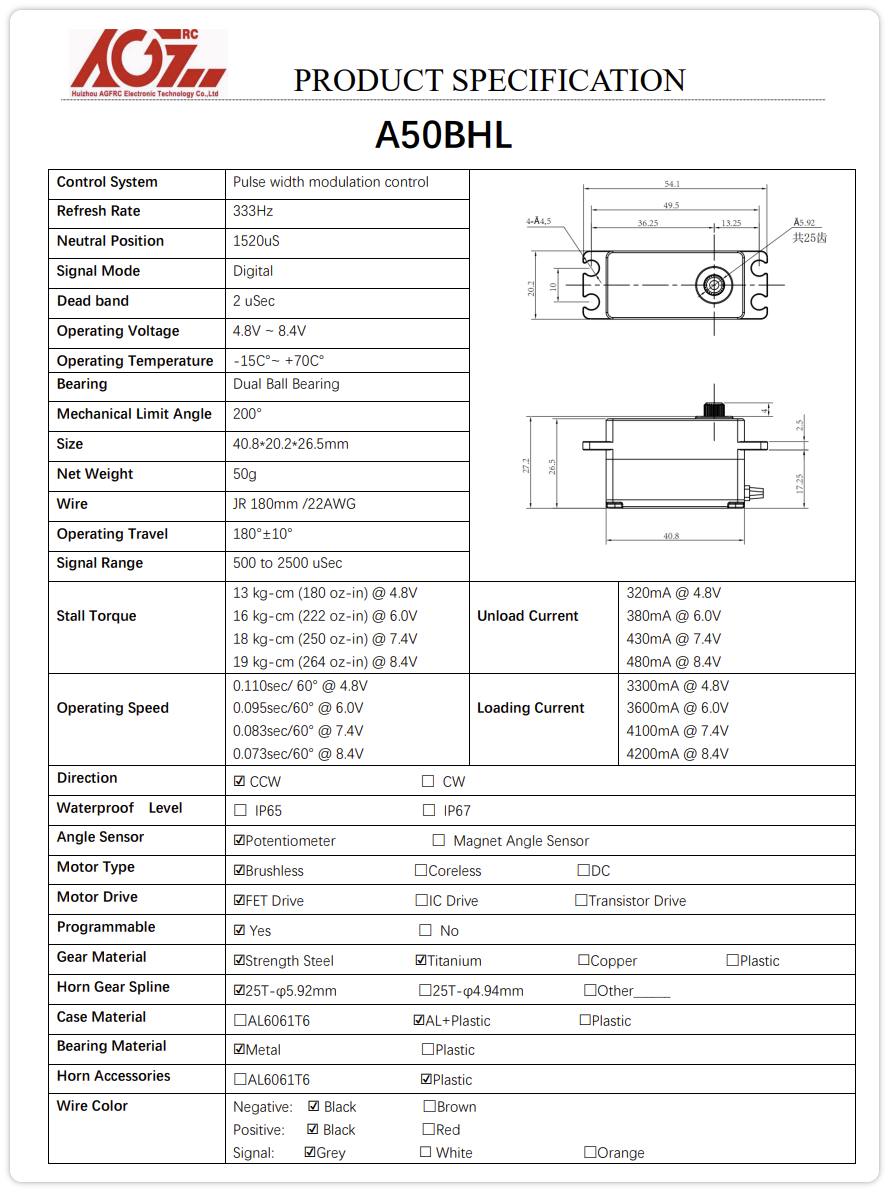

PRODUCT SPECIFICATIONS

Voltage4.8V ~ 8.4V        DirectionCCW

Gear MaterialStrength Steel        Temperature-15°C ~ +70°C

Pulse Width500 ~ 2500 µSec        Refresh Rate1520 µS / 333Hz

Dimension40.8*20.2*26.5 mm        Motor TypeBrushless

Bearing2BB        Dead Band2 µSec

Net Weight50.0 g        Gear Spline25T-ɸ5.92 mm

Case MaterialAL6061T6        Travel Angel180 ± 10°

WireTYU 180mm / 22AWG        Wire ColorBlack | Black | Grey

Operating Speed        Stall Torque

0.110 sec/60° @4.8V        13.0 kg·cm (180 oz·in) @4.8V

0.095 sec/60° @6.0V        16.0 kg·cm (222 oz·in) @6.0V

0.083 sec/60° @7.4V        18.0 kg·cm (250 oz·in) @7.4V

0.073 sec/60° @8.4V        19.0 kg·cm (264 oz·in) @8.4V
