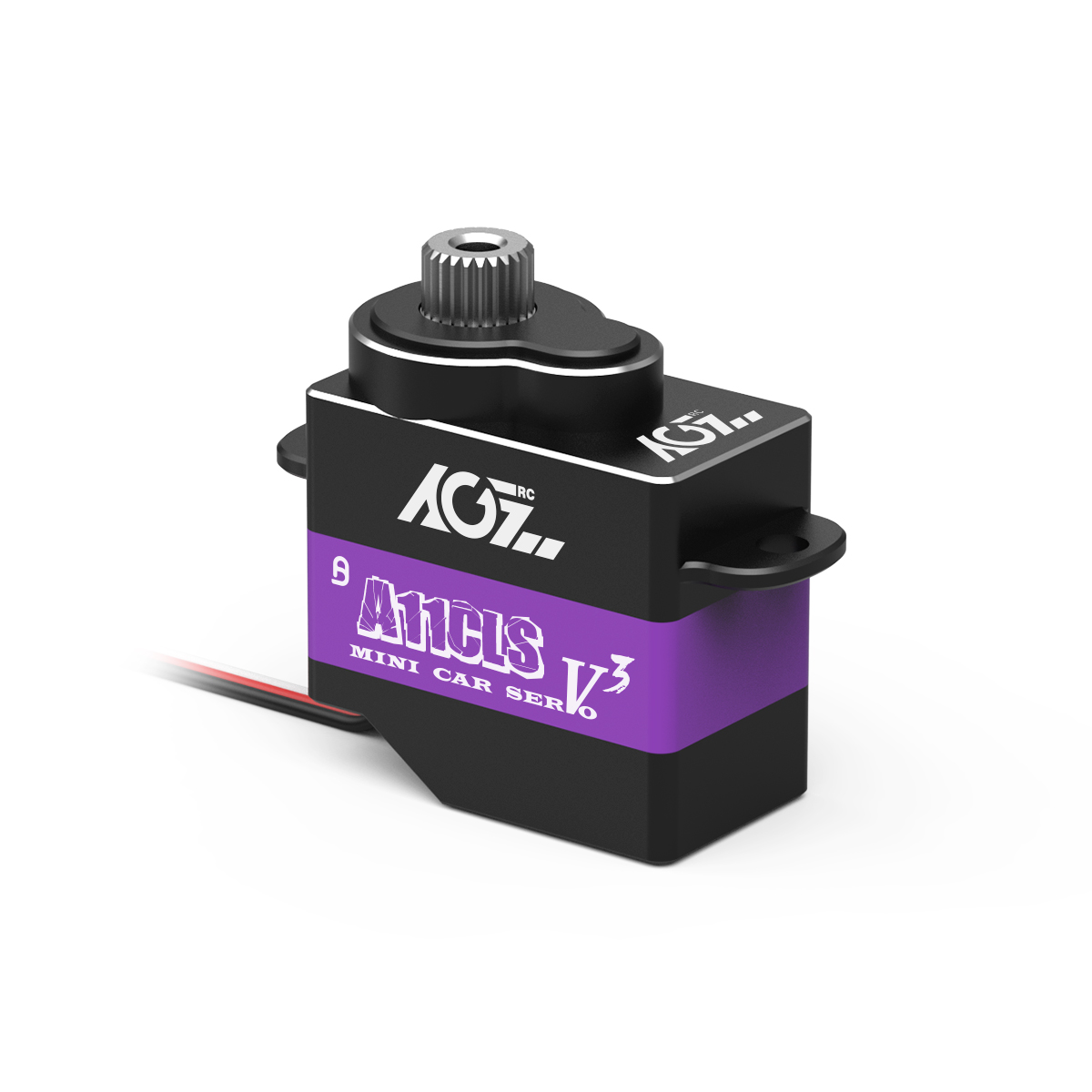

AGFRC A11CLS V3 SERVO            PURCHASE LINK

AGFRC A11CLS V3 Mini Z Scale Digital Programmable Servo. The use of high quality coreless motor, high accuracy metal gear and 2 ball bearings, so that it working stable and smooth. It has programmable function which support to adjust the servo parameter as required.

FEATURES

• High Performance Digital Servo

• High Precision Titanium Gear

• High Quality Coreless Motor

• Fast Cooling Aluminum Case

• Programmable Digital Circuit For Parameter Adjustment

• Programmable Via USB Programmer

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Titanium    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    20*11.3*21 mm    Motor Type    Coreless

   Bearing    2BB    Dead Band    3 µSec

   Net Weight    11 g    Gear Spline    25T-ɸ4.94 mm

   Case Material    AL6061T6    Travel Angel    180 ± 10°

   Wire    JR/JST1.5 80mm / 30AWG    Wire Color    Black | Red | Black

Operating Speed Stall Torque

0.065 sec/60° @4.8V    1.2 kg·cm (17 oz·in) @4.8V

0.050 sec/60° @6.0V    1.4 kg·cm (19 oz·in) @6.0V
