AGFRC A35BHL SERVO            PURCHASE LINK

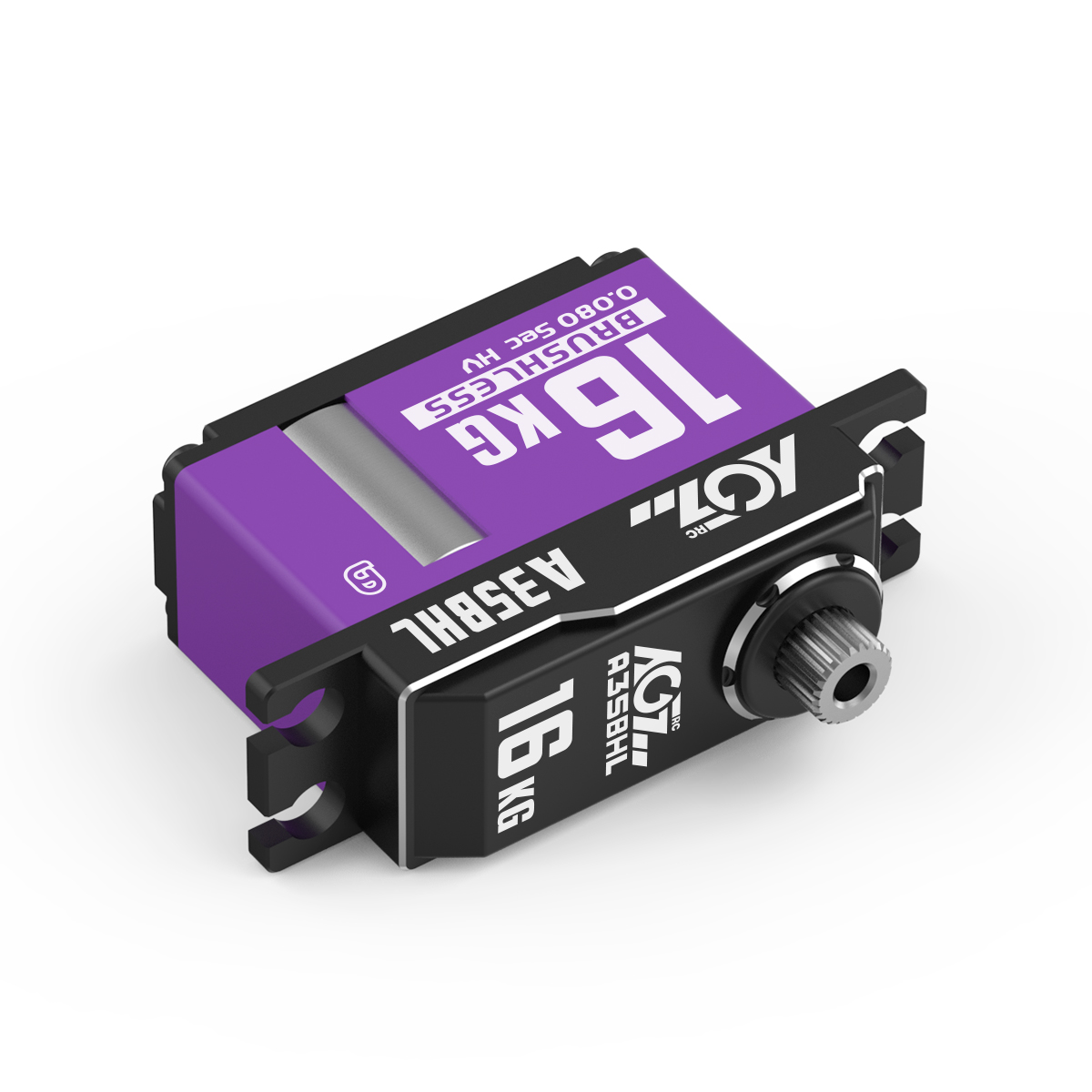

A35BHL is a 25T HV 0.08sec digital medium size servo. Featuring with more reliable brushless motor to provide more torque output, so that it can reach 16kg high torque at 8.4V. The chain of high Precision titanium gear, ruggedized steel gear and dual ball bearing to provide quality user experience. It is programmable servo support to adjust parameter setting. If the parameter can fit your need, then get it for your cars or planes.

Ideal for 1/12 Scale RC Cars, Large Cars/ trucks, 380-500 Size Helicopter Cyclic, 3D Helicopters, Jet Airplanes, Glider, Car, Robot etc.

FEATURES

• Middle Compact Size Design

• High Performance Digital Servo

• Upgrade Robust Steel Gears

• Longer Lifespan Brushless Motor

• Fast Response

• Smooth Dual Ball Bearing

• Full Aluminium Case

PRODUCT SPECIFICATIONS

   Voltage    4.8V ~ 8.4V    Direction    CCW

   Gear Material    Strength Steel    Temperature    -15°C ~ +70°C

   Pulse Width    500 ~ 2500 µSec    Refresh Rate    1520 µS / 333Hz

   Dimension    35.5*15*29.2 mm    Motor Type    Brushless

   Bearing    2BB    Dead Band    2 µSec

   Net Weight    46.0 g    Gear Spline    25T-ɸ5.92 mm

   Case Material    AL6061T6    Travel Angel    180 ± 10°

   Wire    TYU 180mm or 300mm / 26AWG    Wire Color    Black | Red | White

Operating Speed     Stall Torque

0.125 sec/60° @4.8V     10 kg·cm (139 oz·in) @4.8V

0.110 sec/60° @6.0V     12 kg·cm (167 oz·in) @6.0V

0.090 sec/60° @7.4V     15 kg·cm (208 oz·in) @7.4V

0.080 sec/60° @8.4V     16 kg·cm (222 oz·in) @8.4V
