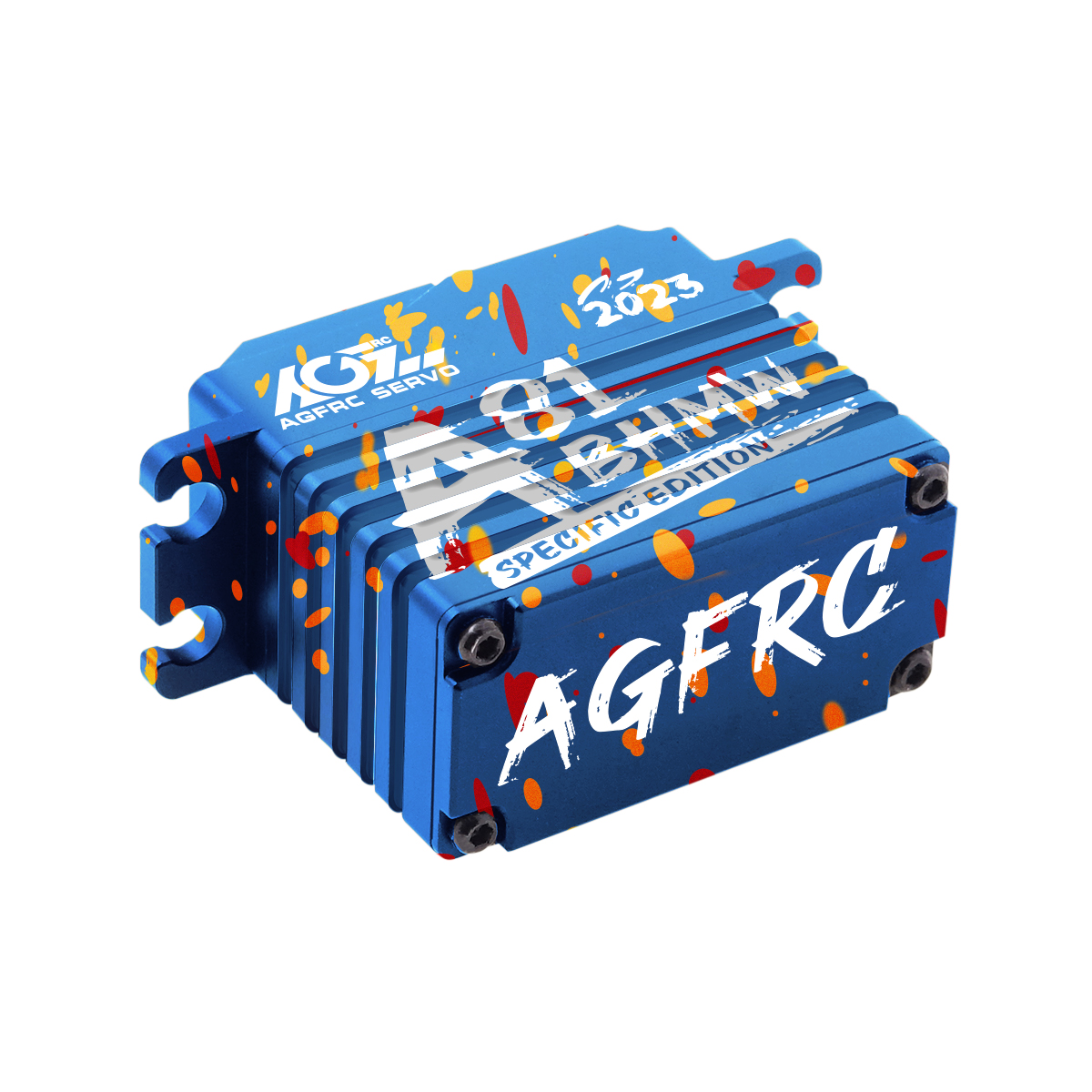

AGFRC Anniversary Special Edition Graffiti Case A81BHMW 45KG Monster Torque 0.085s Hi Speed Magnetic Waterproof Digital Brushless Servo
Item Name:
A81BHMW-2023
Weight:
83g
Voltage:
4.8-8.4V
Retail Price:
US$108.99/PC
Application:
RC Car, Robot, Boat, Helicopter, Airplane etc.

Product Description

The anniversary special edition A81BHMW programmable waterproof standard digital multi-function servo is one of AGFRC's bestsellers. Its reliable performance and design are welcomed by many enthusiasts. Driven at the highest voltage of 8.4V, the maximum torque can reach 45Kg-cm, and the fastest speed can reach 0.085Sec/60°. The torque and speed can meet the needs of most customers and are very suitable for 1/8 1/10 scale models.


The highlight of its internal structure design is composed of reinforced steel gears and shafts, high-efficiency brushless motors, and silk-smooth three bearings. With these supports, the servo can achieve the best smooth operation. If your training time and competition are long, you don't have to worry about the servo overheating phenomenon under long-term work, because its CNC shell cooling groove can quickly cool and dissipate heat. And its magnetic sensor waterproof IP67 function allows the model to achieve freedom of sea, land and air. You don't have to worry about rain in the wet sky when flying, rc boat enthusiasts can also train on streams and seaside, And it runs fast even on muddy ground and thick snow.


The color special Edition servo was created to celebrate the 6th anniversary of AGFRC. Thank you very much for your continuous trust and support to AGFRC. Therefore, this color special edition servo is specially prepared for you. Each servo is a unique artistic graffiti design, Hope you can be full of beautiful colors like it in the RC model world and real life.


Feature

Ultra Light Unique Design

High Performance Standard Digital Servo

Fast Cooling Heat Sink Case

Strengthen High Chrome Steel Shaft

Extra Strong Patent Steel Gears

Super Strong Three Ball Bearings

High Efficiency Bruhless Motor

Programmable Digital Circuit

Magnetic Sensor Waterproof IP67

Ideal for 1/10, 1/8  On Road, Off road, Truck, Airplane, Helicopter and Engine etc.


Specification

Item name: A81BHMW-2023

Operating Voltage: 4.8-8.4 V

Operating speed: 0.115sec/60° @ 6.0V

Operating speed: 0.100sec/60° @ 7.4V

Operating speed: 0.085sec/60° @ 8.4V

Stall Torque: 34 kg-cm (473 oz-in) @ 6.0V

Stall Torque: 39 kg-cm (542 oz-in) @ 7.4V

Stall Torque: 45 kg-cm (625 oz-in) @ 8.4V

Gear: Steel

Motor: BLS

Size: 40*20*37.2mm (1.57 x 0.78 x 1.46 in)

Weight: 83g

Connector Wire: JR 300mm


Test Video

 A81BHMW for throttle and steering on 1/8 Losi Elite: https://www.bilibili.com/video/BV14A411j77P/

Runnig Video

A81BHMW for throttle and steering on 1/8 Losi Elite: https://www.youtube.com/watch?v=0kafb5v55pQ&t=6s
